Proax: What Causes Phase Loss or Imbalance & How to Detect It with Monitoring Relays
April 30, 2025
Understanding Phase Loss & Phase Imbalance
Three-phase electrical systems are the backbone of industrial and commercial power distribution, prized for their efficiency and reliability. However, these systems are vulnerable to phase loss and phase imbalance, which can result in serious consequences like equipment failure, costly downtime, and safety hazards.
In this guide, let’s break down:
- What causes phase issues
- Their consequences
- How to detect them with monitoring relays
- Practical prevention strategies
What is Phase Loss & Phase Imbalance?

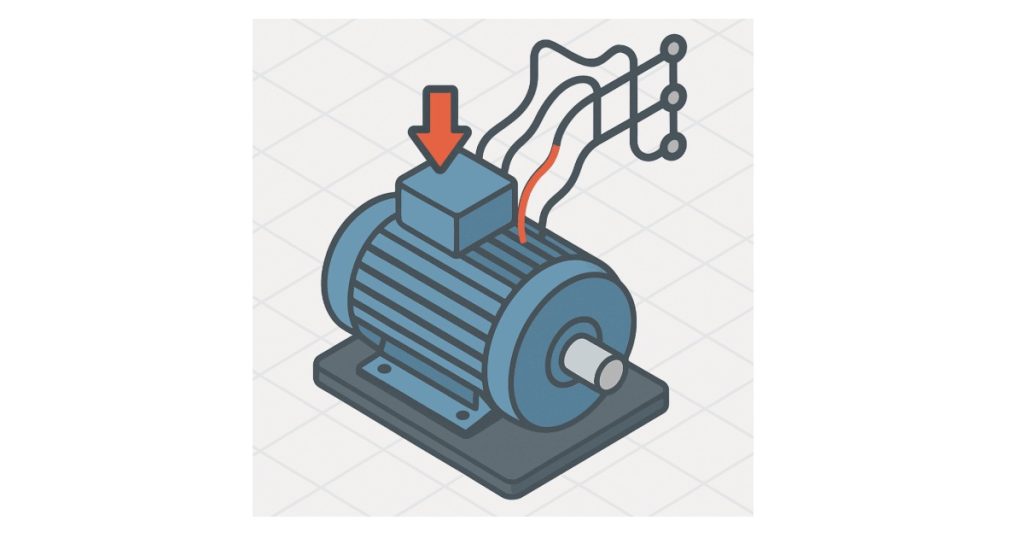

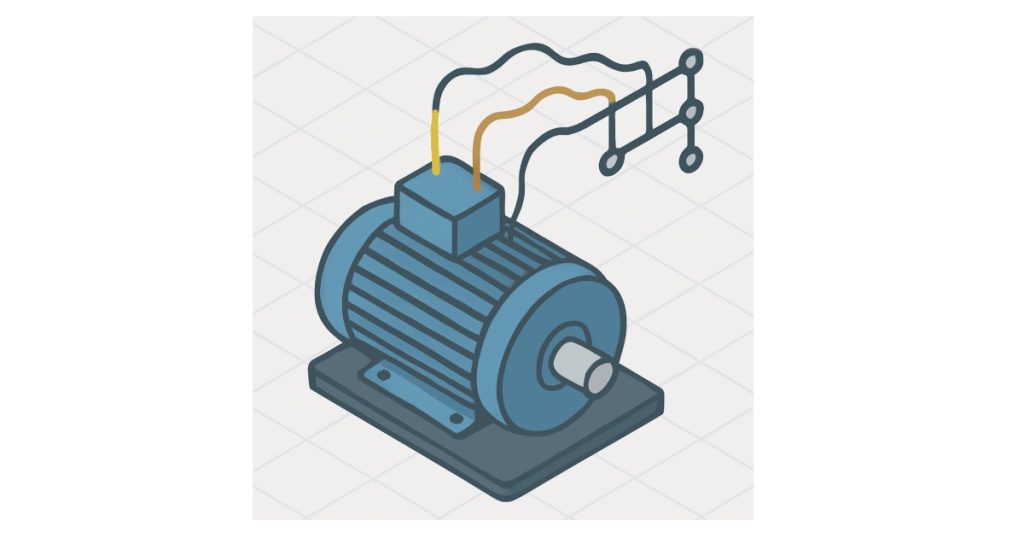

Phase Loss (Single Phasing): One of the three electrical phases is lost or significantly reduced, forcing the remaining two to compensate. This causes motors to draw unbalanced currents and quickly overheat.
Phase Imbalance: Voltage or current between the three phases becomes uneven, even if all phases are technically still operating.
Common Causes of Phase Issues
| Cause | Description |
|---|---|
| Blown Fuses or Tripped Breakers | One disconnected fuse can break the entire phase chain. |
| Damaged or Aged Cables | Mechanical damage or insulation failure can disconnect a phase. |
| Loose or Corroded Connections | Terminal posts and connectors degrade over time, leading to intermittent phase loss. |
| Unbalanced Loads | Connecting large single-phase loads unevenly causes imbalance. |
| Aging Infrastructure | Old transformers, worn relays, or outdated panels increase risk. |
| Improper Protection Settings | Incorrectly set overloads or VFDs may not react during faults. |
| Environmental Conditions | Weather events, wildlife, or pole damage can suddenly knock out a phase. |
| Integration of Renewables | Intermittent solar or wind sources can destabilize phases if unmanaged. |
| Motor Winding Failure | Insulation degradation in motor windings contributes to phase loss internally. |
Consequences of Phase Loss & Imbalance
- Equipment Overheating: Motors draw excessive current on remaining phases.
- Vibration and Performance Loss: Motors may stall or rotate in reverse.
- Reduced Lifespan: Even a 5% imbalance can cut motor capacity by 25%.
- Harmonics & Flickering: Poor power quality affects sensors, controllers, and lighting.
- Safety Risks: Overheated components pose fire and electrical hazards.
How to Detect Phase Issues Using Monitoring Relays
Monitoring relays are dedicated devices that continuously check the integrity of all three phases. When something’s off—they act fast.

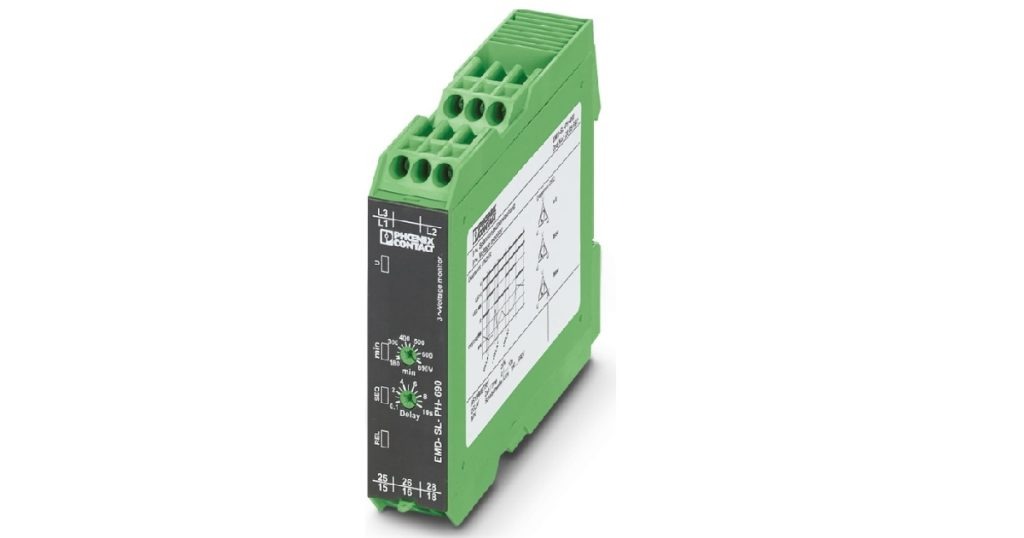

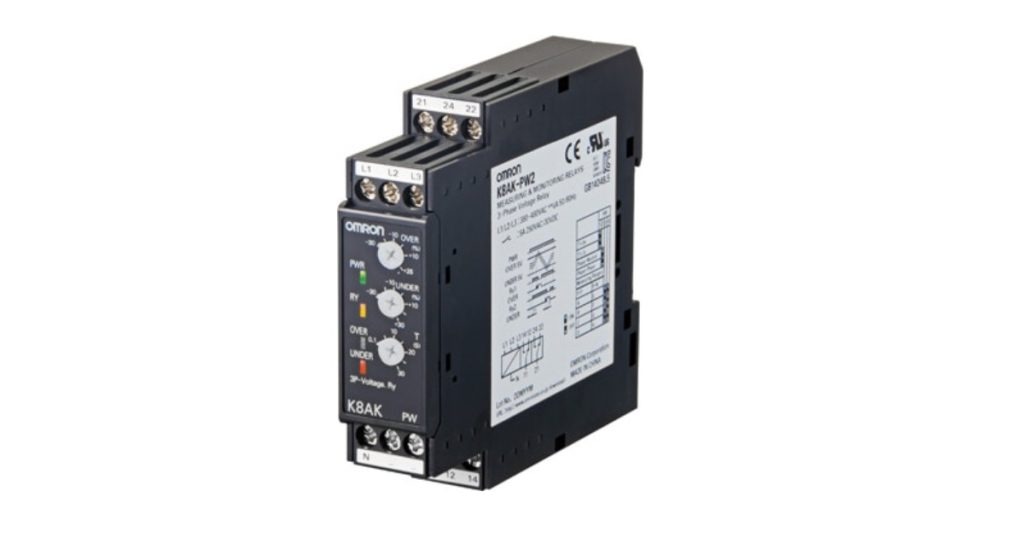

For example, 3-phase monitoring relays are used to detect phase loss, asymmetry, and incorrect phase sequence. You can explore models like the Omron K8AK-PW or K8DS-PM, or opt for Phoenix Contact options such as the EMD-SL-PH-690 and EMD-SL-3V-400, both of which offer robust protection for voltage phase monitoring.

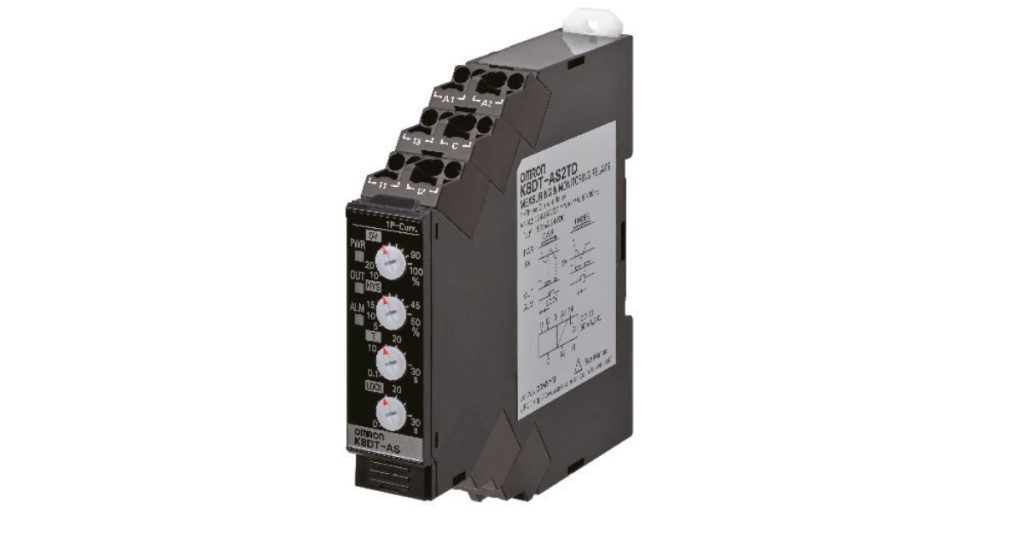

If you’re dealing with individual line issues, 1-phase monitoring relays like the Omron K8AK-AS and K8AK-VS are reliable options.
For thermal protection or heating applications, devices such as the K8AK-TH offer precise temperature monitoring. You can view Proax’s full range of monitoring products here.
Product Comparison Table
| Model | Type | Key Features | Voltage Range | Brand |
|---|---|---|---|---|
| K8AK-PW | 3-Phase | Over/undervoltage | 3-wire/4-wire | Omron |
| K8AK-AS | 1-Phase | Over/undercurrent | 0.1–30A | Omron |
| EMD-SL-PH-690 | 3-Phase | Sequence, failure, asymmetry | 208–690V AC | Phoenix |
| K8AK-VS | 1-Phase | Over/undervoltage | 200–240V AC | Omron |
| EMD-SL-3V-400 | 3-Phase | Window voltage monitoring | 280–520V AC | Phoenix |
Prevention Tips & Best Practices
| Action | Benefit |
|---|---|
| Routine Maintenance | Catch wear and corrosion before failure. |
| Even Load Distribution | Prevents phase imbalance and inefficiency. |
| Upgrade Equipment | Faster response to faults. |
| Continuous Monitoring | Real-time alerts prevent unplanned downtime. |
Frequently Asked Questions
What causes phase loss in a 3-phase system?
Blown fuses, loose wiring, or damaged cables are common causes.
How do I detect a phase imbalance?
Use a 3-phase monitoring relay like K8AK-PW or EMD-SL-PH-690 to detect imbalances in real time.
What are the risks of ignoring phase imbalance?
Reduced motor life, overheating, harmonics, and fire risks.
Can these relays be installed in older panels?
Yes, most models are DIN rail mountable and retrofit read.
Final Thoughts
Phase loss and imbalance are preventable yet critical threats in industrial systems. With monitoring relays and proactive strategies, you can avoid catastrophic damage, reduce downtime, and extend asset life.
Explore Proax’s wide selection of 3-phase and 1-phase monitoring relays — backed by expert support and fast Canadian shipping.
