Hubbell: JIC Series – NEMA 4X Continuous Hinge Quick Release Padlockable Enclosure

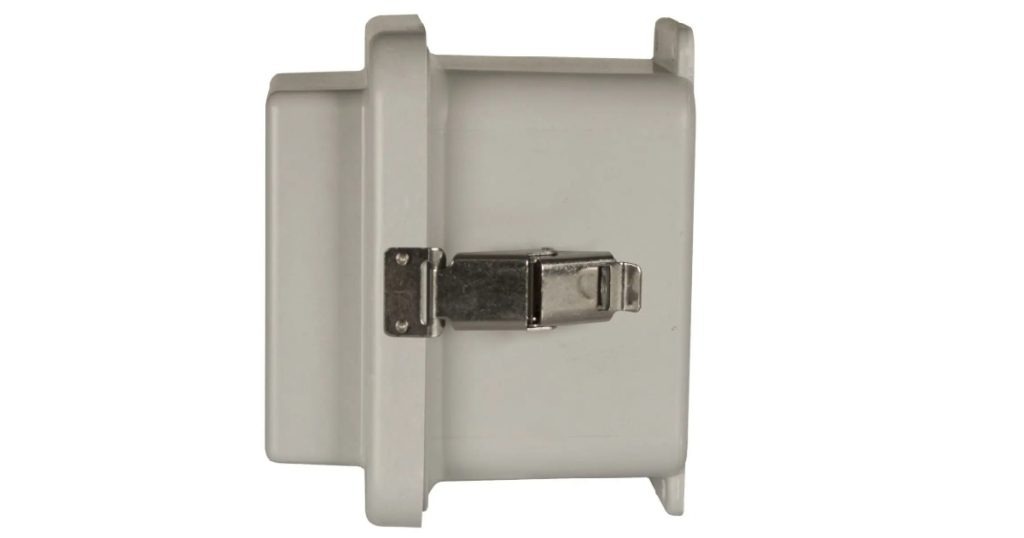

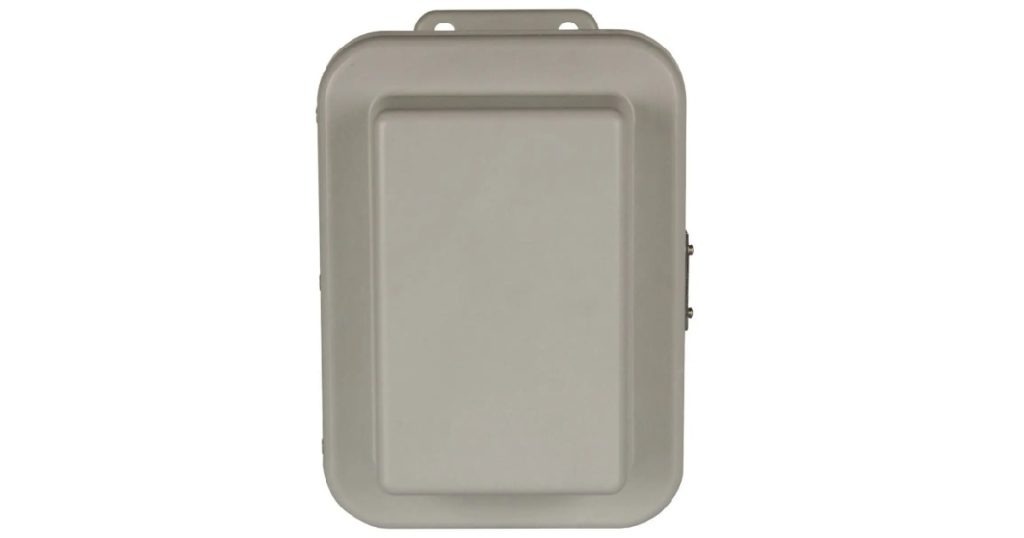

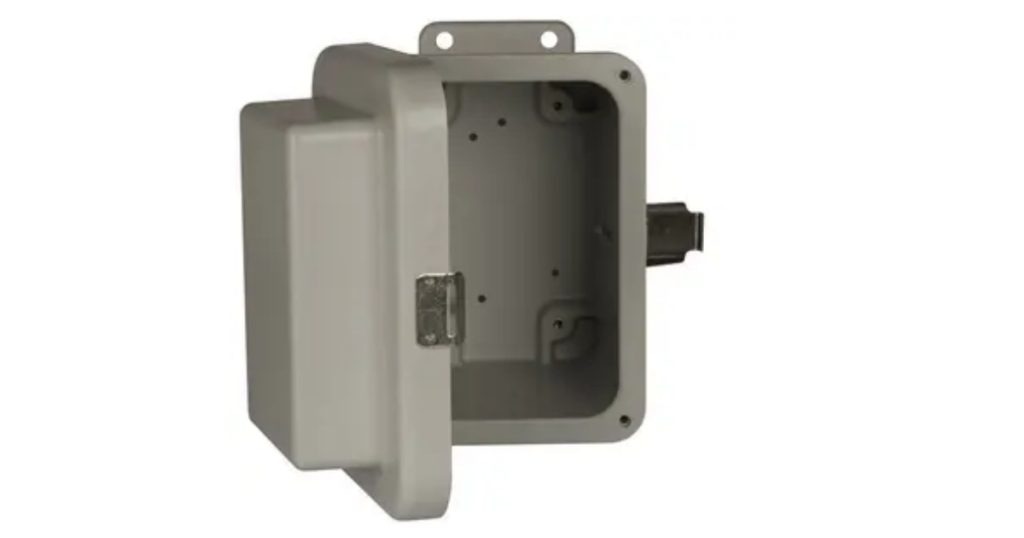

Hubbell JIC Series - NEMA 4X Continuous Hinge Quick Release Padlockable Enclosure

July 3, 2025

JIC Series NEMA 4X Continuous Hinge Quick Release Padlockable Enclosure Provides Robust Protection for Commercial & Industrial Spaces

The JIC Series fiberglass construction is designed to protect electrical and electronic equipment in commercial or industrial environments from dust, dirt, oil, water and other corrosive materials. A wide variety of Non-Metallic enclosures are available with such features including hot compression molded fiberglass with reinforced thermoset polyester, 300 series stainless steel used on all external hardware and has poured polyurethane seamless gasket providing water-tight, dust tight environmental seal. The recessed pan head screws ensure no protruding surfaces or exposed pocket areas for accumulation of dust or debris and contains molded in flange for easy mounting, with panel mounting capability for fixed rear panel.

  • Hubbell JIC Series - NEMA 4X Continuous Hinge Quick Release Padlockable Enclosure
  • Hubbell JIC Series - NEMA 4X Continuous Hinge Quick Release Padlockable Enclosure
  • Hubbell JIC Series - NEMA 4X Continuous Hinge Quick Release Padlockable Enclosure

    • Features

    • cUL/ UL 50/508, Type 1, 3, 4X, 6P, 12
    • CSA Standard C22.2 Type 1, 3, 4X, 6P, 12
    • IP66, NEMA Standard 250 Type 1, 3, 4X, 6P, 12
    • Temperature Range: -76°F to 274°F (-60°C to 134°C)
    • Flammability Rating UL94-5V
    • Window Flammability UL94 HB
    • Non-flame propagating

    Specifications

    General

    • Catalog Number: HW-RHJ201610CHQR
    • Cover Type: Hinged Cover
    • Material: Fiberglass
    • Mounting Type: Wall Mount
    • Series: JIC
    • Type: Enclosure

    Dimensions

    • Cubic Capacity: 3200 cu.in
    • Depth: 10 in
    • Height: 20 in

    Certifications & Compliance

    Certified Listed: cULus

    Hubbell JIC Series - NEMA 4X Continuous Hinge Quick Release Padlockable Enclosure

    Source

    JIC Series
