Siemens: SIRIUS 3RV2 Circuit Breakers
March 7, 2025
Discover the SIRIUS 3RV2 Circuit Breakers Range by Siemens
The availability of machines and plants is a precondition for maximum productivity. Machines and plants should therefore be reliably protected against overload from the power supply system. In the event of a failure, motor starter protectors quickly disconnect the equipment from the supply, thus preventing expensive damage. The SIRIUS 3RV2 motor starter protector provides effective protection.
Take Advantage of the Benefits of Sirius 3RV2 Motor Starter Protectors
SIRIUS 3RV2 motor starter protectors reliably intervene in three different cases. In the event of a short-circuit – current >13 times the rated current – the short-circuit releases isolate the faulty load feeder from the power supply within only a few milliseconds. Greater damage, caused by fires for example, can thus be avoided. The motor starter protector features a lockable operating mechanism for manual closing/opening, to be used for example while carrying out repairs.
The overload release isolates the load from the power supply if it is loaded with an overcurrent for a certain time. Tripping is based on a specific time-current characteristic. This prevents possible damage to the load and the system. The overload release also trips in the event of phase failure or extreme phase unbalance.
What Does Biowaste Have to Do with Siemens Circuit Breakers?
Quite simply: the housings of the SIRIUS 3RV2 circuit breakers are largely made of a particularly sustainable plastic. In its production, all fossil raw materials were replaced by recycled organic waste. Of course, without compromising on quality and performance.

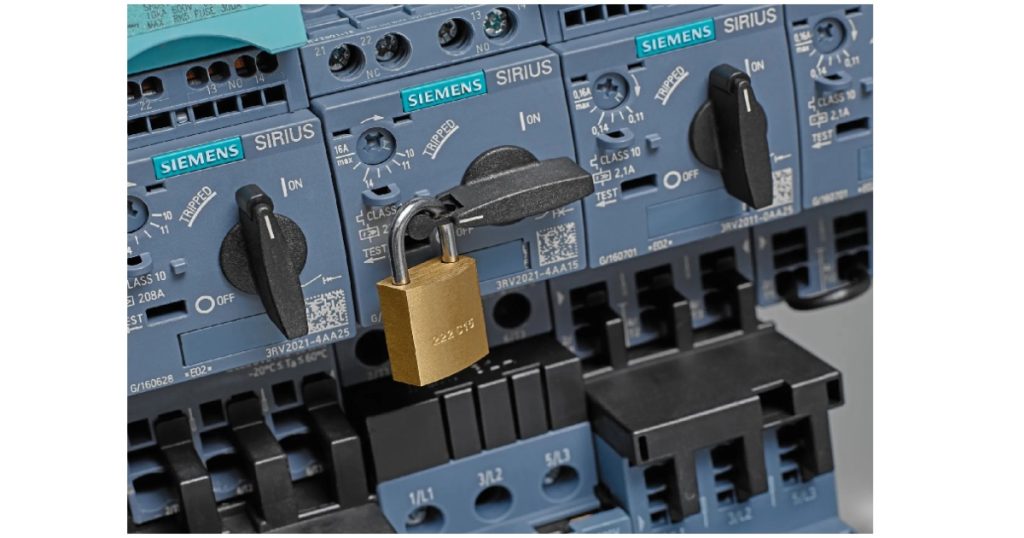

Protection from Unauthorized Access
The integrated locking device protects against unauthorized access, thus ensuring trouble-free operation. This protective device is installed as standard in every SIRIUS 3RV2 motor starter protector.
Simple Installation

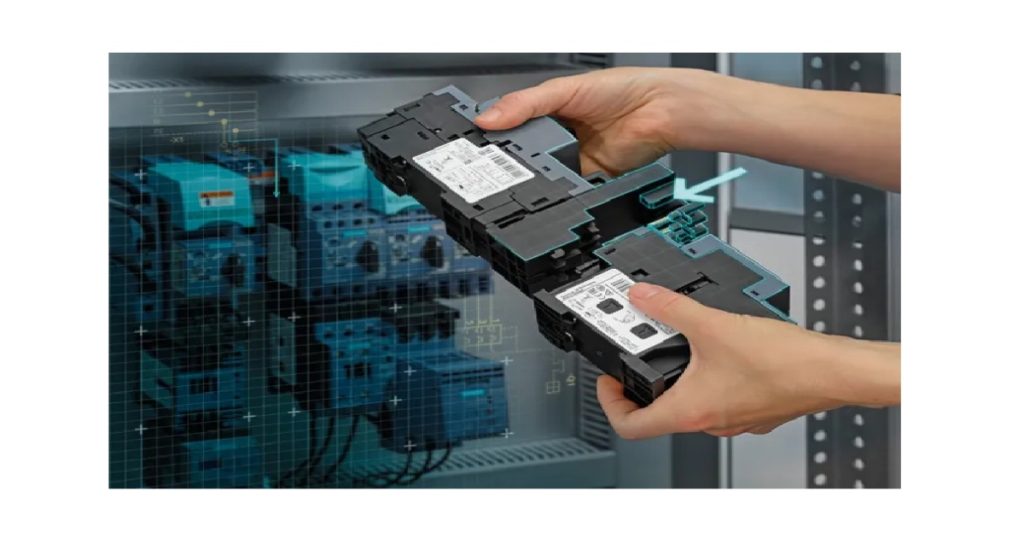

Sizes S00 and S0 to 40A are equipped for particularly flexible assembly by means of the screw and spring-type terminals. Thanks to appropriate link modules, motor starter protectors in these sizes can be quickly and simply connected to SIRIUS switching devices.

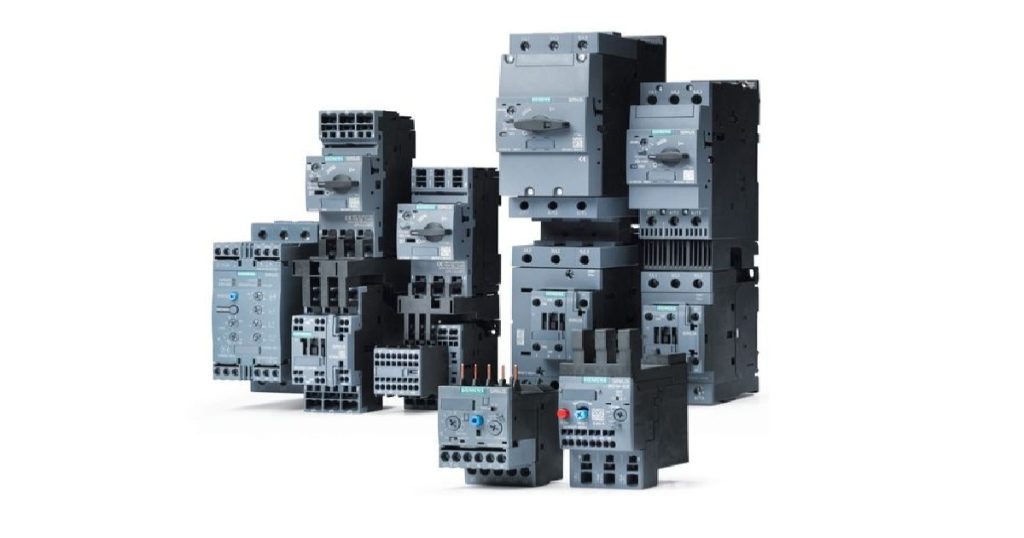

All Relevant Sizes
Being available in sizes S00, S0, S2 and S3 as well as in different versions means that the motor starter protectors/circuit breakers cover all tasks involved in the protection of motors, starters, transformers and UL 489 applications.

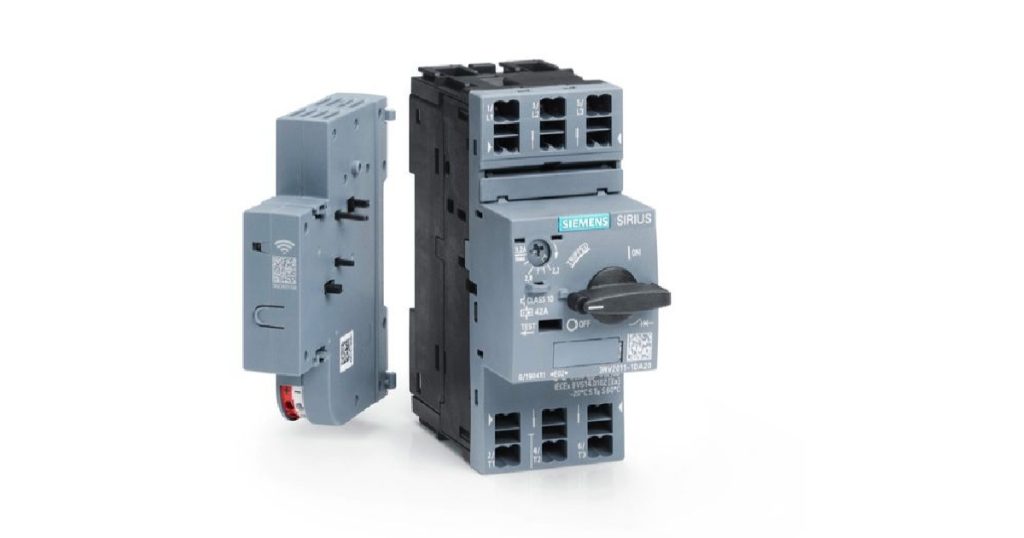

New Sirius 3RV2921-5M Wireless Auxiliary & Signaling Switch
This extends the SIRIUS circuit-breakers and contactors with wireless communication and you receive:
Integrated auxiliary/fault signal evaluation
- Indication of the switching position and tripping in the event of a fault
- Differentiation between deliberate switch-off and fault-related tripping
Integrated counting of switching cycles and tripping actions
- Information about the lifecycle of connected devices
- One device for all SIRIUS 3RV2 sizes from S00 to S3 up to 55 kW
Accessories for the Circuit Breaker – Door-Coupling Rotary Operating Mechanisms
Motor starter protectors/circuit breakers with a rotary operating mechanism can be mounted in a control cabinet and operated externally by means of a door-coupling rotary operating mechanism. When the cabinet door with motor starter protector is closed, the operating mechanism is coupled. When the motor starter protector closes, the coupling is locked which prevents the door from being opened unintentionally.
SIRIUS 3RV2 Circuit Breakers Applications
