Moxa: TWS-3010-SPE Series – Two-Wire Ethernet Switches (SPE/APL)

April 23, 2026 - MOXA TWS-3010-SPE Series - Two-Wire Ethernet Switches (SPEAPL)

April 23, 2026

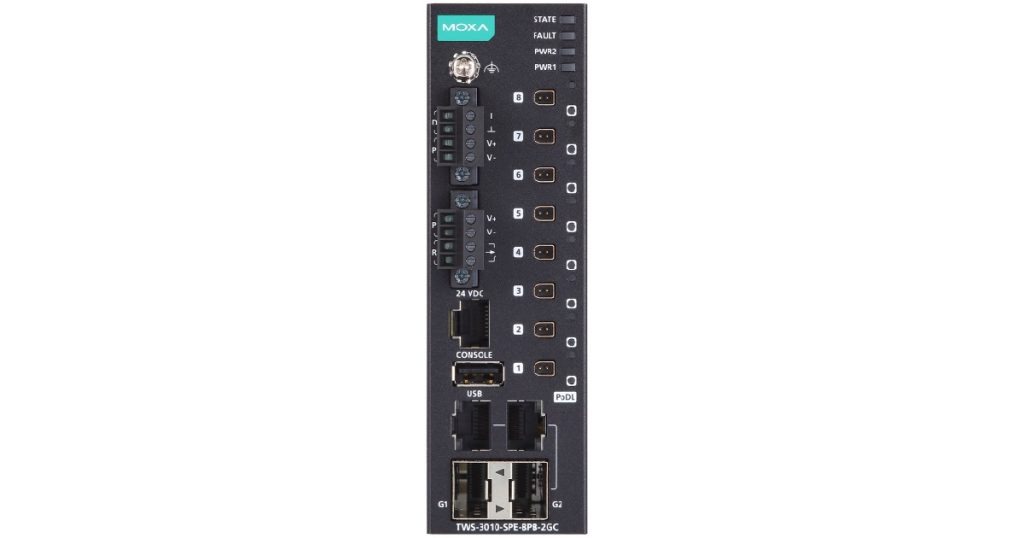

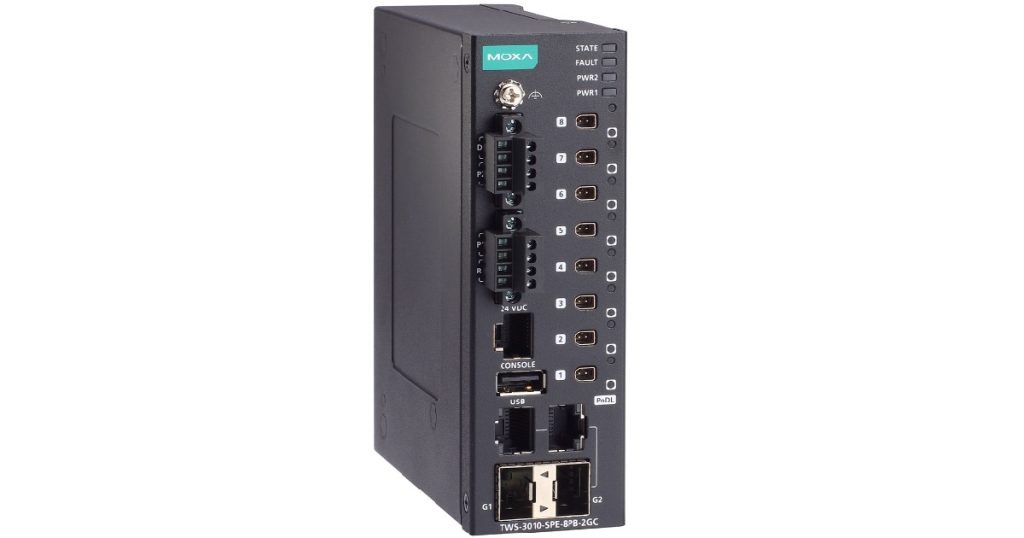

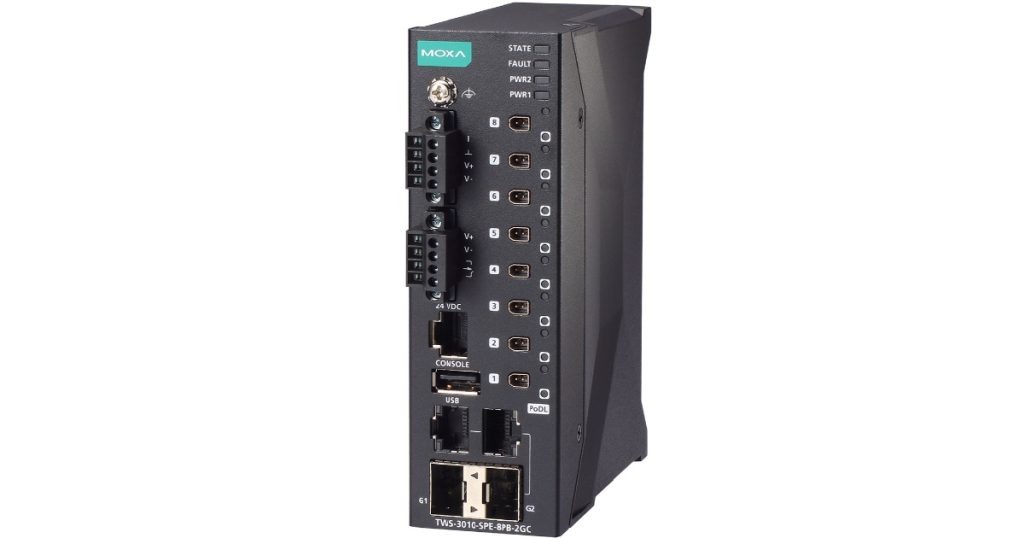

New TWS-3010-SPE Series Industrial Two-Wire Ethernet Switch: Designed to Bring Reliable Ethernet Connectivity to the Field

8 10MbE-SPE, 2 1GbE-port managed Ethernet switches with PoDL

With 10BASE-T1L technology and support for Power over Data Line (PoDL) Classes 10, 11, and 12, the TWS-3010-SPE Series switch extends Ethernet communication to field devices. It delivers both power and data over a single twisted pair at data rates up to 10 Mbps and distances up to 1 km, simplifying installation, lowering wiring costs, and enabling more flexible field deployment.

Diagnostic functions and port-mirroring make deployment and troubleshooting a breeze. The TWS-3010-SPE Series has a compact chassis and front-facing ports making installation and maintenance easy in tight control cabinets. Industrial Ethernet protocols, like PROFINET, allow for seamless integration with existing systems, and provide scalability for future digitalization and IIoT expansion.

  • April 23, 2026 - MOXA TWS-3010-SPE Series - Two-Wire Ethernet Switches (SPEAPL)
  • April 23, 2026 - MOXA TWS-3010-SPE Series - Two-Wire Ethernet Switches (SPEAPL)
  • April 23, 2026 - MOXA TWS-3010-SPE Series - Two-Wire Ethernet Switches (SPEAPL)

Features & Benefits

  •  8 single-pair Ethernet 802.3cg 10Base-T1L ports
  •  PoDL power classes 10, 11, and 12 on each SPE port
  •  Compact size for easy installation
  •  RSTP/STP and MRP for network redundancy and high network availability
  •  Rotary DIP switch enables profile-based configuration selection without a web browser
  •  Supports EtherNet/IP, PROFINET, and Modus TCP industrial protocols for easy integration and monitoring in automation systems
  • cULus listed

Specifications

Input/Output Interface

  • Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons: Reset button
  • Digital Input Channels: 1
  • Digital Inputs:
    • +13 to +30 V for state 1
    • -30 to +3 V for state 0
    • Max. input current: 8 mA

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 43 x 135 x 111 mm (1.69 x 5.32 x 4.37 in)
  • Weight: 830 g (1.77 lb)
  • Installation: DIN-rail mounting; Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (Package Included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Altitude: Up to 2,000 m. Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes

For more information on Moxa solutions HERE

April 23, 2026 - MOXA TWS-3010-SPE Series - Two-Wire Ethernet Switches (SPEAPL)

Source

TWS-3010-SPE
