Mersen:  Limitor – aSJB/D Back-up Fuses, 3,6kV to 12kV – with Striker – F075583 – 45ASB36V350P-2

Sept 4, 2025 - Mersen  Limitor - aSJBD Back-up Fuses, 3,6kV to 12kV - with Striker - F075583 - 45ASB36V350P-2

September 4, 2025

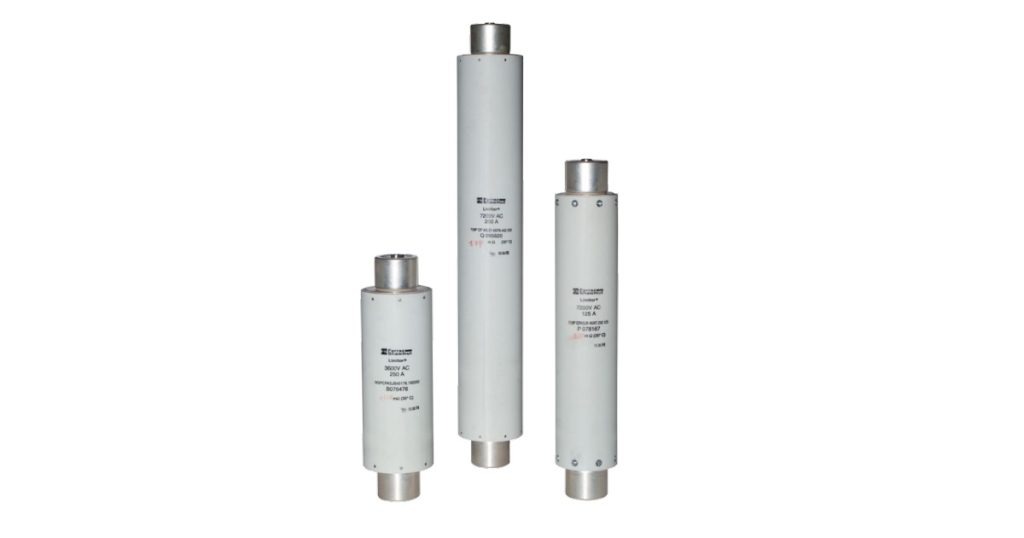

F075583 Limitor – aSJB/D Back-up Fuses: Reliable Protection in High-Voltage Switchgear & Controlgear Systems

Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Mersen HV fuse link for motor protection is specially designed to protect HV motors against the effect of short circuit current and support repeated peak currents due motor starting. Mersen uses the best materials: fuse elements are in pure silver, caps are in silver-plated brass and body is in melamine fiber glass. As defined in the IEC 60644 the coefficient K is 0.51.

Features & Benefits

  • High speed switching
  • Voltage drive
  • Low inductance module structure
  • Energy efficency
  • Back-up fuse-links
  • High breaking capacity
  • High current limitation
  • Low power losses
  • Striker 20N / 20 mm

Applications

  • HV motor protection
  • HV motor pump protection
  • For indoor use
  • Operating temperature -25°C to +40°C

Technical Specifications

Item numberF075583
Catalogue No45ASB36V350P-2
DescriptionHigh Voltage Back-up fuse for motor Limitor 3.6kVAC IEC 350A Size d=76mm, L=292mm With Striker 20N
EAN/UPC Code3605340010350
Rated voltage AC IEC3.6 kV
Ampere Rating350 A
AC or DCAC
Fuse Sized=76mm L=292mm
MountingClip
Clearing I2t At Rated Voltage1700 kA²s
AC Max I.R./Breaking Capacity: I160 kA
Min Interrupting Rating (MBC)2400 A
Indication SystemYes
Indication System TypeStriker
Connection/Terminal MaterialSilver-Plated Brass
Connection/Terminal TypeCylindrical
Product Diameter76 mm
Product Length358 mm
Sell Pack Quantity3 EA
Sell Pack Weight9.9 kg
Sell Pack Width340 mm
Sell Pack Length400 mm
Sell Pack Height120 mm
Product groupHigh Voltage IEC Fuses
Power Dissipation at Intermediate Current Value47 W @ 0.7 In
Body/Insulating MaterialMelamine fiber glass
Product Weight3.3 kg
Mersen  Limitor - aSJBD Back-up Fuses, 3,6kV to 12kV - with Striker - F075583 - 45ASB36V350P-2

Source

F075583
