Rittal: New RiLineX Board for Busbar System

Sept 11, 2025 - Rittal RiLineX Board 1

September 11, 2025

New RiLineX Board for Busbar System is Suitable for Applications in the AC Range Up to 1,000 V AC & DC Up to 1,500 V DC

Complete board 550 A, 905 mm for 1,000 mm wide enclosures.

The RiLineX Board is a time saving solution through complete digital product data. Provides shorter mounting time thanks to pre-mounted complete board. The RiLineX Board is suitable for applications in the alternating current range up to 1,000 V AC and direct current up to 1,500 V DC. It has been tested for short circuit resistance up to max. 65 kA. Contact hazard protection up to IP 2XB and can be upgraded to IP 3X. Tested and certified to IEC and cULus. Simple extension and baying.

Specifications

Material

  • Polyamide
  • (PA 6)
  • Fire behavior corresponding to UL 94
  • E-Cu

Color

  • RAL 35745
  • RAL 9005

Supply Includes

  • Including integrated busbars

Protection Category IP to IEC 60 529

  • IP 2XB

Standards

  • IEC 61 439-1/-2
  • UL 508

Rated Current Max.

  • 550 A

Rated Current (UL)

  • 540 A

Electrical UL Ratings (SCCR)

  • 45 kA – 600 V, RMS
  • 100 kA – 600 V, fuse class L max. 1600 A, JDDZ/7
  • 100 kA – 600 V, circuit breaker max. 600 A, DIVQ/7
  • 100 kA – 480 V, circuit breaker max. 800 A, DIVQ/7
  • 65 kA – 600 V, circuit breaker max. 800 A, DIVQ/7

Center-to-Center Spacing of Busbars

  • 60 mm
  • Sept 11, 2025 - Rittal RiLineX Board

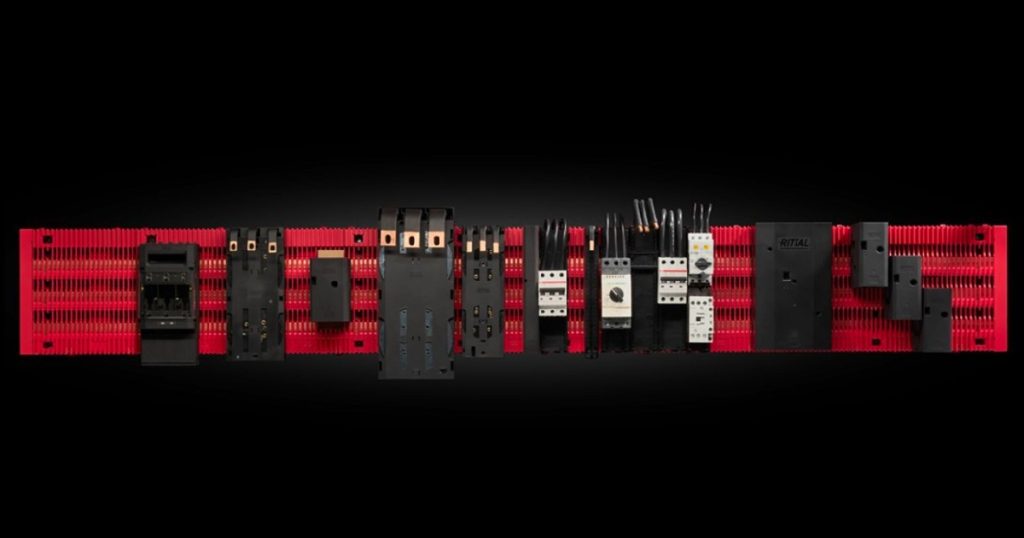

    Rittal’s RiLineX Line Busbar System
  • Sept 11, 2025 - Rittal RiLineX Board 1

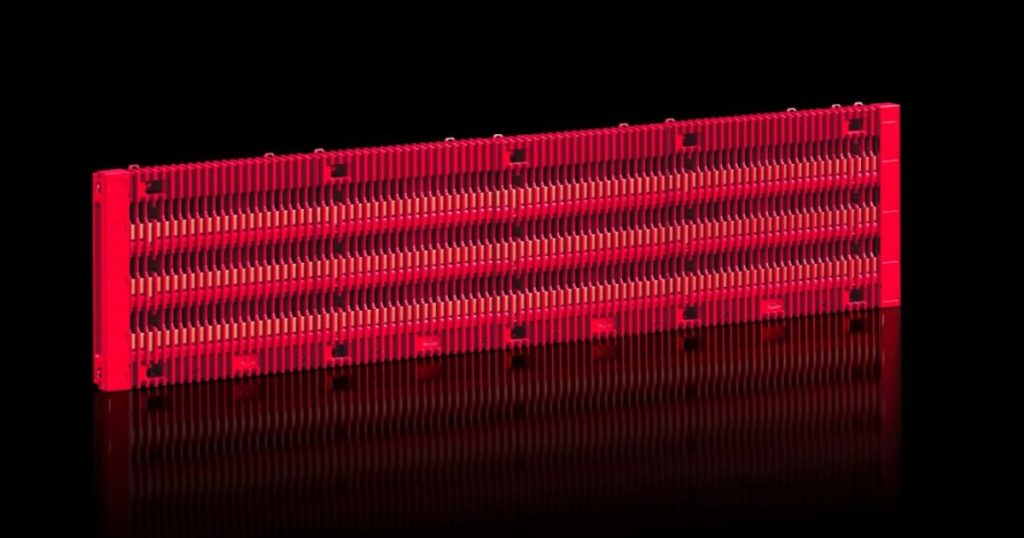

    New RiLineX Board for Busbar Systems

    • For more information on the RiLineX Line Busbar System HERE

    Sept 11, 2025 - Rittal RiLineX Board

    Source
