PFC300 Controller: An Effective Choice for Process Industry & Building Automation

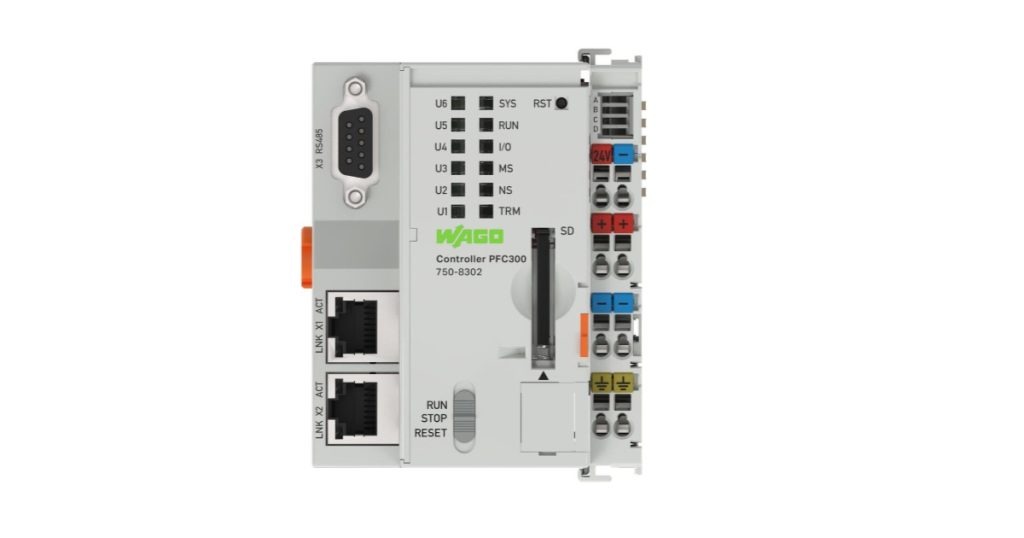

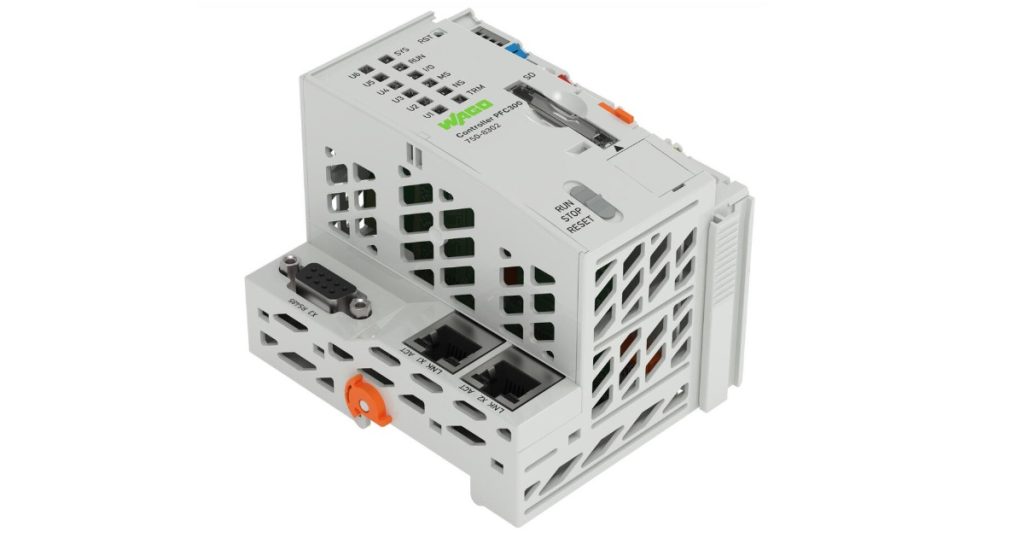

The PFC300 Controller is a compact controller designed for the modular WAGO I/O System. In addition to network and fieldbus interfaces, it supports digital and analog modules as well as specialty modules from the 750/753 Series.

Two Ethernet interfaces with an integrated switch enable line topology wiring or communication across two separate networks in distinct modes. An integrated Webserver provides user configuration options, while displaying PFC300 status information.

In addition to the process industry and building automation, typical applications for the PFC300 include standard machinery and equipment control – such as packaging, bottling, and manufacturing systems, as well as textile, metal, and wood processing machines.

  • Sept 10, 2025 - WAGO PFC300 Controller 1
  • Sept 10, 2025 - WAGO PFC300 Controller 1
  • Sept 10, 2025 - WAGO PFC300 Controller 1

    • Key Benefits

    • Programmable per IEC 61131-3
    • Programmable via CODESYS V3.5
    • Direct connection of WAGO I/O Modules
    • 2 x ETHERNET (configurable), RS-485
    • Operating system: Linux with PREEMPT_RT patch
    • Configuration via CODESYS or Web-Based Management user interface
    • Maintenance-free

    Specifications

    Technical Data

    CommunicationsTelecontrol protocols
    Modbus TCP master/client
    Modbus (UDP)
    Modbus (RTU)
    EtherNet/IP Adapter
    EtherNet/IP Scanner
    EtherCAT Master
    PROFINET Controller
    OPC UA Server/Client
    OPC UA Pub/Sub
    ETHERNET
    RS-485 interface
    MQTT
    ETHERNET ProtocolsDHCP
    DNS
    NTP
    SFTP
    FTP
    FTPS
    SNMP
    HTTP
    HTTPS
    SSH

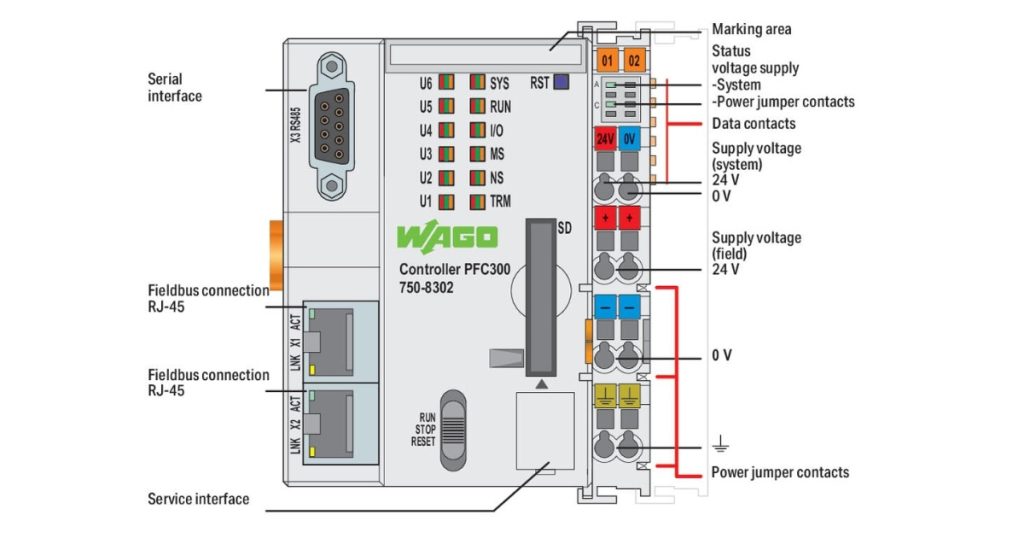

    Connection Data

    Connection Technology: Communication/FieldbusModbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket
    Connection Technology: System Supply2 x CAGE CLAMP
    Connection Technology: Field Supply6 x CAGE CLAMP
    Connectable Conductor MaterialsCopper
    Connection TypeSystem/field supply
    Solid Conductor0.08 … 2.5 mm² / 28 … 14 AWG
    Fine-Stranded Conductor0.08 … 2.5 mm² / 28 … 14 AWG
    Strip Length8 … 9 mm / 0.31 … 0.35 inches
    Connection Technology: Device Configuration1 x USB-C 2.0

    Environmental Requirements

    Mounting TypeDIN-35 rail
    Ambient Temperature (Operation)-25 … +60 °C
    Ambient Temperature (Storage)-25 … +85 °C
    Protection TypeIP20
    Pollution Degree2 per IEC 61131-2
    Operating Altitudewithout temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
    Mounting PositionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
    Relative Humidity (Without Condensation)95%
    Vibration Resistance4g per IEC 60068-2-6
    Shock Resistance15g per IEC 60068-2-27
