Pilz: New PSENscan PN – with Profinet Interface
October 2, 2025

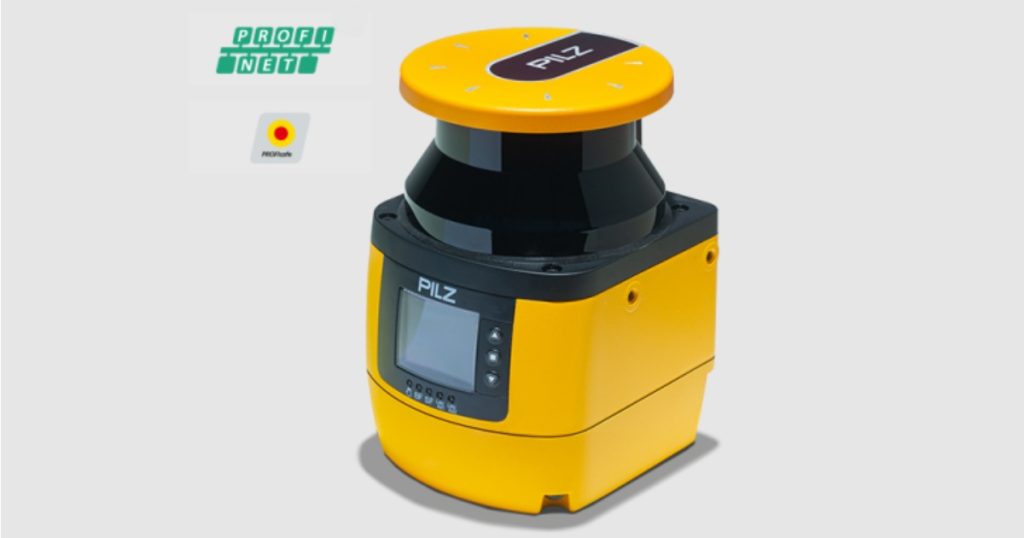

PSENscan PN: New Profinet Interface for Easy Integration into Profinet Networks
With the new Profinet interface, the Pilz safety laser scanner can be easily integrated into Profinet networks. Simple wiring enables fast commissioning. Data can be viewed directly in the controller, thus offering comprehensive, rapid diagnostics. The new PSENscan PN also offers additional features such as simultaneous monitoring of up to eight protection zones and a faster start-up time.
Features
- PROFINET IO DEVICE with PROFIsafe
- 30 mm, 40 mm, 50 mm, 70 mm, and 150 mm Detection Capability
- Muting and Partial Muting
- Application in Accordance with EN ISO 61496-3
- Vertical Applications
- Max. 15 Dynamic Reference Markers
- Measured Data Output (UDP)
- Fast Replacement Due to Exchangeable Memory Module on the Rear
- Window Exchangeable
- ROS & C++ Interface Available
- 5.5 m Safety Zone
- Max. 8 Safety/Warning Zones in Parallel
- Extended Connection Options (I/O)
- 70 Configurable Zone Sets
Flexible Solution for Your Application
Safety laser scanners PSENscan PN guarantee productive area monitoring for your application – whether individually, in series connection or when devices are exchanged. Possible to monitor up to 8 safety zones.

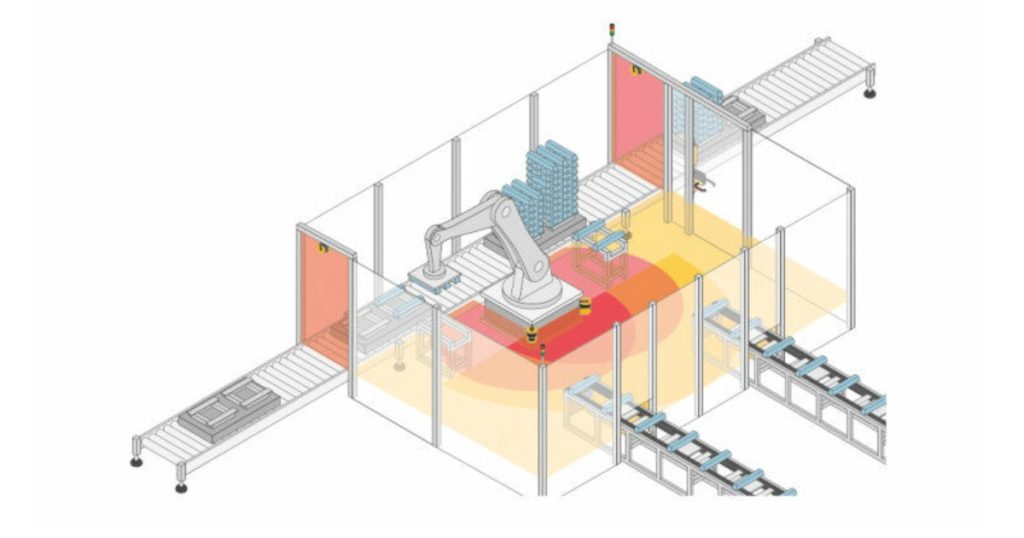

Simultaneous Monitoring of up to 8 Safety Zones

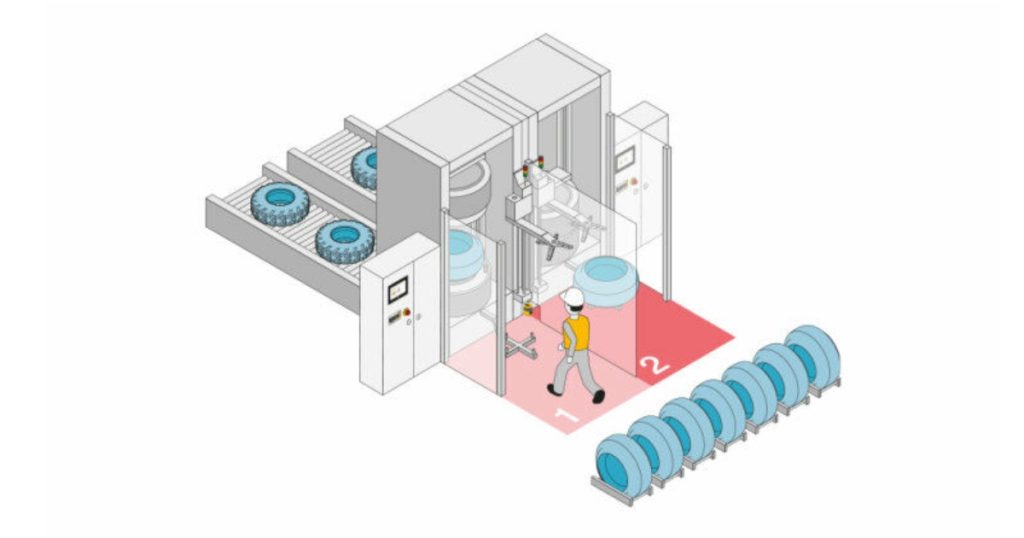

With PSENscan PN, up to 8 safety zones can be monitored simultaneously and independently. Only the plant section that is accessed by a person is stopped. As a result, safety distances in your plant can be optimised. This ensures increased productivity and improved ergonomics for your plant – and optimum safety.
Coding Ensures an “Interference-Free Environment”
Two safety laser scanners not connected in series can be operated flexibly at close proximity to each other, thanks to coding. This increases the availability of the plant and machinery and shortens the production time.

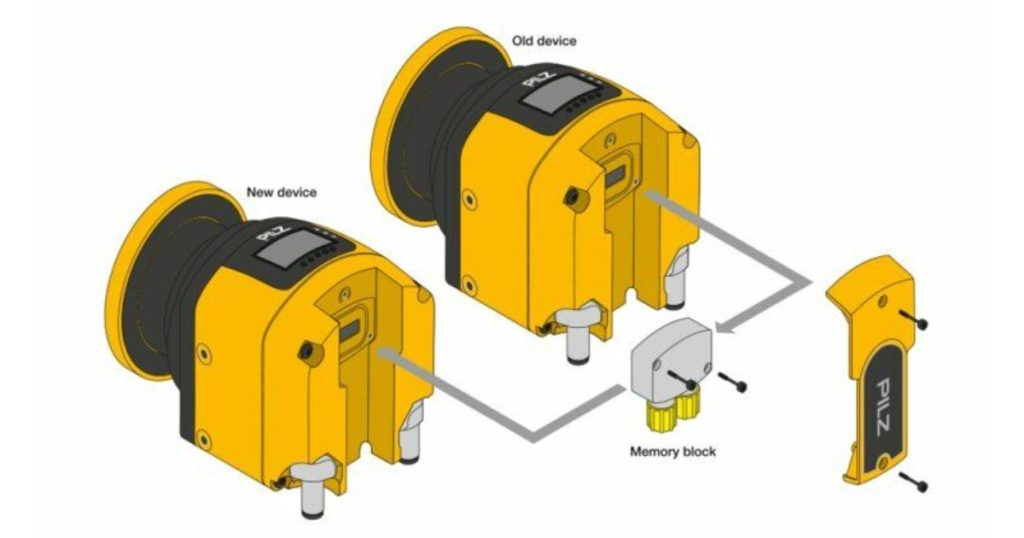

High Availability Thanks to Fast Replacement
The safety laser scanners PSENscan have an exchangeable memory module. Should a device become damaged, and another laser scanner is used (same model), the configuration is simply transferred to your new device.
For more information PSENscan PN HERE
