WAGO: 811-1316 Series Fuse Holders

June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4

June 18, 2025

New DIN-Rail Mount 811 Series Fuse Holders: Ideal for Motor Control, Power Distribution & the Solar Industry

WAGO’s DIN-Rail Mount 811 Series Fuse Holders provide users with maintenance-free, vibration-proof, and corrosion-resistant connection using Class CC & 10 x 38 mm fuses. This new addition has a max voltage of 1,500 V DC, and UL 4248 certified, making it perfect product for high voltage applications seen in motor control, power distribution and the solar industry.

  • June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4
  • June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4
  • June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4
  • June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4
  • June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4
  • June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4

    • Overview

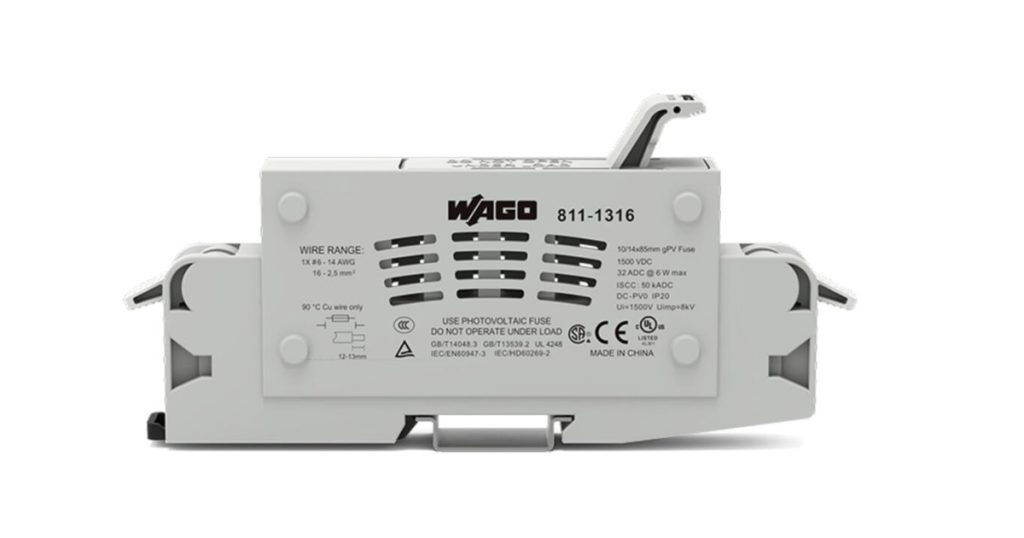

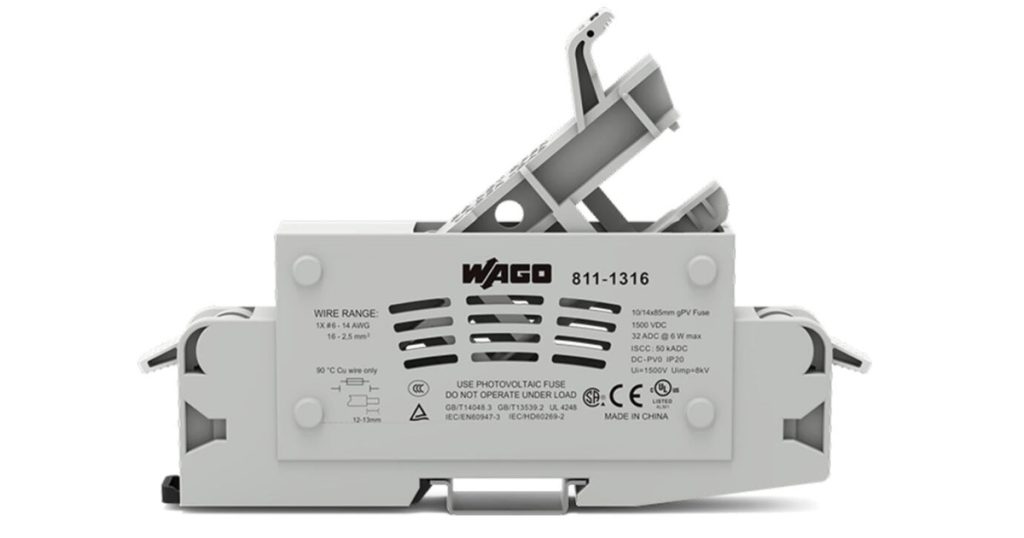

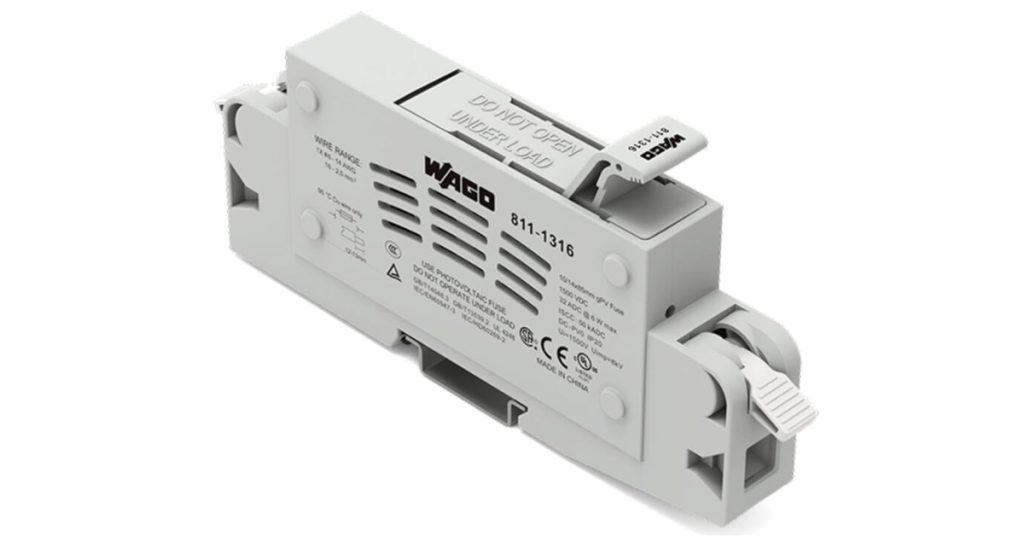

    WAGO’s fuse terminal block/ fuse holders (item number 811-1316) simplifies electrical installations. Strip lengths must be between 12 mm and 13 mm when connecting conductors to this fuse terminal block. Featuring conductor terminals along with CAGE CLAMP, this connector is highly versatile.

    WAGO’s CAGE CLAMP connection provides a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the conductor type, this fuse terminal block is suitable for conductor cross sections ranging from 2.5 mm² to 16 mm². Up to one potential / one pole can be connected to this terminal block using two clamping points on one level. The light gray housing is made of polyamide (PA66) for insulation. The 811 Series terminal blocks are mounted using DIN-35 rails and have CSA and UL approvals.

    Specifications

    General

    Voltage type 1DC

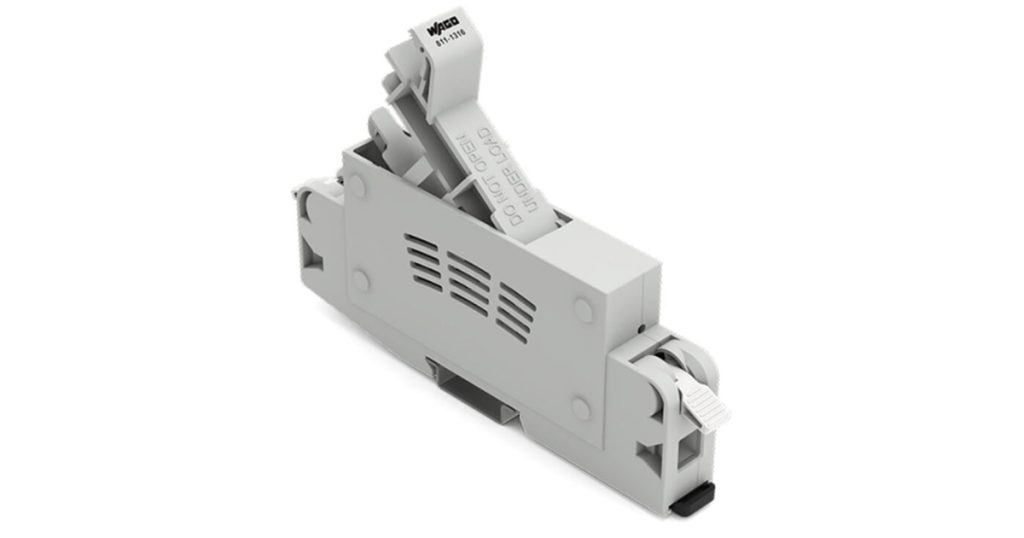

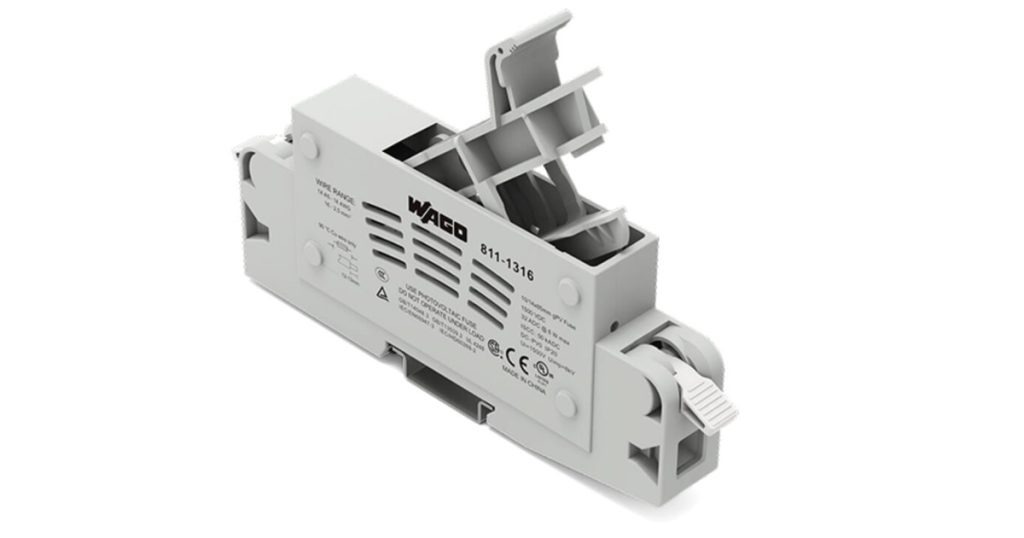

    Fuse receptaclepivoting
    Fuse typeCylindrical fuse; 10/14 x 85 mm; for photovoltaic applications

    Connection Data

    Clamping units2
    Total number of potentials1
    Number of levels1

    Connection 1

    Connection technologyCAGE CLAMP
    Actuation typeLever
    Connectable conductor materialsCopper
    Solid conductor2.5 … 16 mm² / 14 … 6 AWG
    Stranded conductor2.5 … 16 mm² / 14 … 6 AWG
    Fine-stranded conductor2.5 … 16 mm² / 14 … 6 AWG
    Strip length12 … 13 mm / 0.47 … 0.51 inches
    Number of poles1
    Wiring directionSide-entry wiring

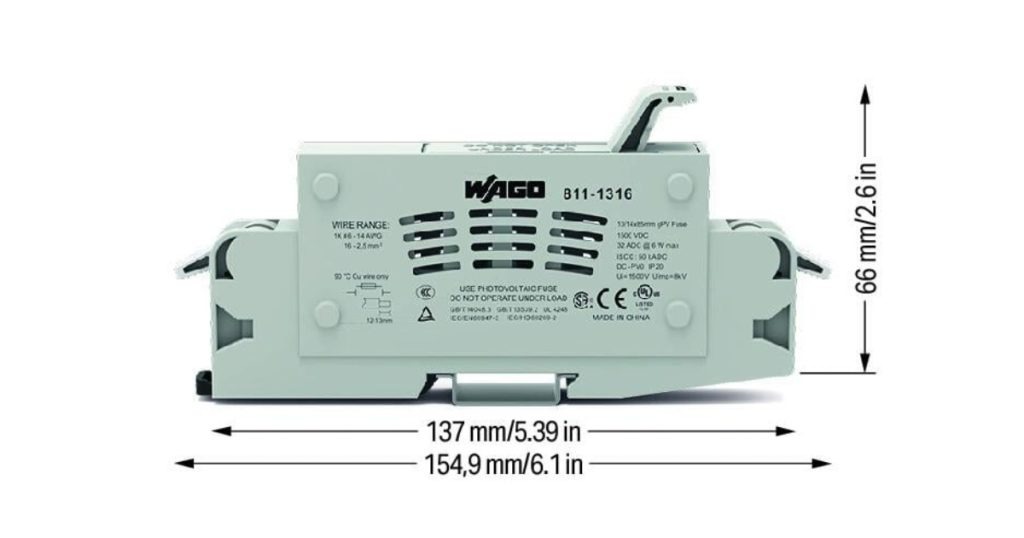

    Mechanical Data

    Designhorizontal type
    Mounting typeDIN-35 rail
    Mounting (note)The fixed foot of the fuse terminal block must face upwards so that the fuse cannot fall out.
    Protection typeIP20
    June 18, 2025 - WAGO 811-1316 Series Fuse Holders 4

    Source

    811 Series
