Hammond: Rack Mount Basic PDU 1583 Series

Sept 11, 2025 - Hammond Rack Mount Basic PDU 1583 Series 1

September 11, 2025

Discover the 1583 Series Rack Mount Basic PDU: New Sizes to Fit Your Project

15A | Single-Phase 125V | Front and/or Rear Facing 5-15R Outlets

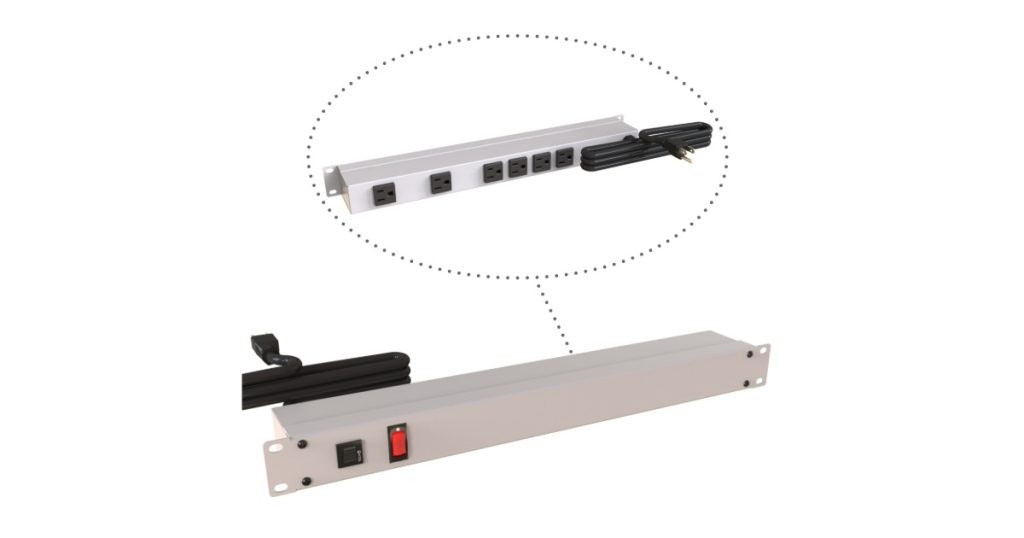

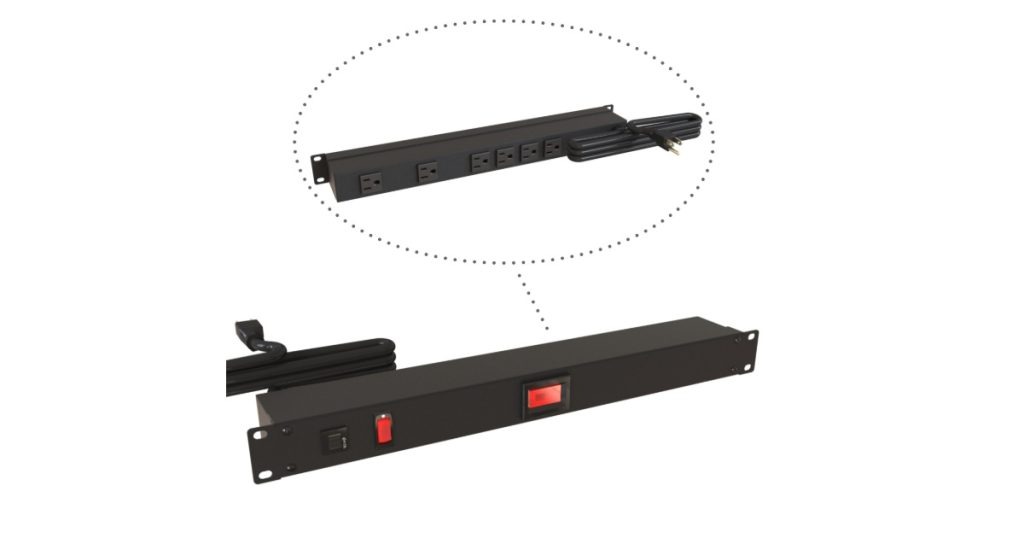

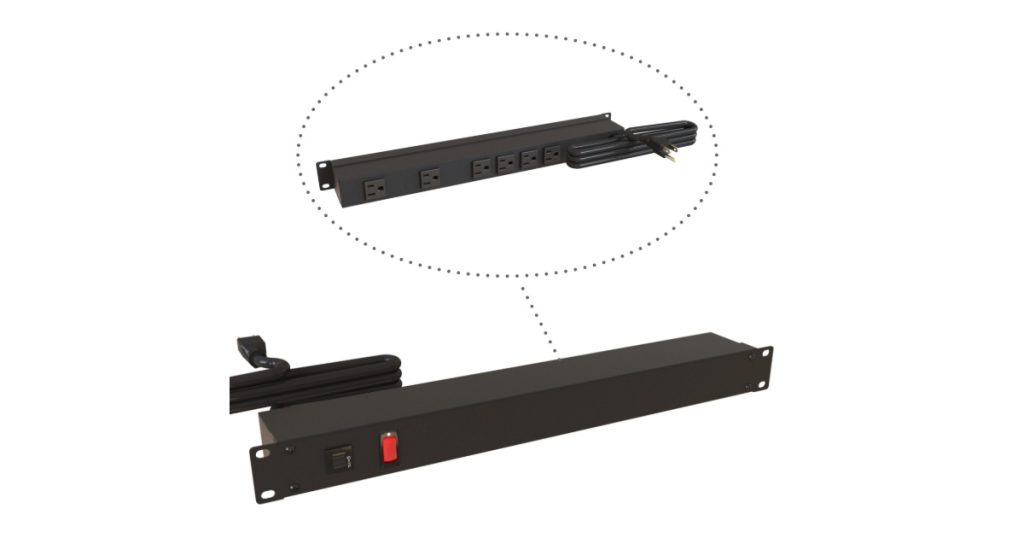

Hammond’s 1583 Series Rack Mount Basic PDU is designed for power distribution from the rear of the unit. It is available with an illuminated on/off rocker switch or red power indicator light, and in new sizes to fit your project needs. Plug type options include NEMA 5-15P straight blade or NEMA L5-15P locking type. Rotated options include outlets with extra spacing for clearance of most plug-in transformers. 1U horizontal 19″ rackmount installation.

  • Sept 11, 2025 - Hammond Rack Mount Basic PDU 1583 Series 1
  • Sept 11, 2025 - Hammond Rack Mount Basic PDU 1583 Series 1
  • Sept 11, 2025 - Hammond Rack Mount Basic PDU 1583 Series 1

    • Specifications

    General Specifications

    • Heavy-duty 14-gauge wire cord – 14/3 SJT type for extreme temperature ranges and integral moulded plug.
    • Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
    • cULus recognized Standard UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
    • Finished in RAL9005 black or ASA61 gray powder coat. Complies with the Greenguard guidelines for indoor air quality.
    • TAA-compliant for federal GSA schedule purchases within the USA.
    • RoHS Compliant.
    • Manufactured in North America.

    Metered Specifications

    • Unit includes – easy to read 0.37″ high, red LED ammeter (1.38″ x 0.88″ display).
    • Digital ammeter accuracy +/- 0.1 Amps

    Surge Specifications

    • Surge-protected panels incorporate our surge module:
      • Max Energy (Joules) is 1080 J.
      • 25000 Amp-rated MOV’s for 75,000 Amps of single pulse transient current.
      • Voltage Protection Rating (Vpr) of 500V in all three modes (L-N, L-G, N-G).
      • Nominal Discharge Current (In) of 5kA.
      • The green indicator light confirms surge module is active.
      • ​Internal protection will disconnect the surge module at the end of its useful life (and extinguish the green light) but will maintain power to the load, now unprotected.
    • Voltage suppression at the outlet guards against transients from the equipment on the outlet strip.
    • cRUus recognized to UL 1449 & C22.2 No. 269.3-17 & No. 269.4-17 for Surge Protective Devices – Type 3 & Type 4.
    • cRUus recognized to UL 1363 & C22.2 No. 308-18 for Relocatable Power Taps & Multi Outlet Assemblies.

    Shielded Cord Specifications

    • Shielded cord reduces EMI/ RFI and “dirty” power from utilities.
    • Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.

    For more information on Hammond PDUs HERE
