icotek: New AT-HA Adapter Grommets – Cable Entry Solution

Sept 18, 2025 - icotek New AT-HA Adapter Grommets 1

September 18, 2025

New AT-HA Grommet: Compact Integration of 3A & 4A Connectors in the IMAS-CONNECT System

With the new AT-HA grommet, icotek is expanding its innovative IMAS-CONNECT adapter system with a forward-looking solution for industrial use. The AT-HA enables the integration of 3A and 4A plug inserts directly into an adapter cable entry without the need for an additional cut-out.

The AT-HA cable gland is based on the icotek KT cable grommet ‘large’ and is equipped with a robust polyamide body. It is fully compatible with all icotek KT based cable entry systems and is delivered ready for use with a pre-assembled locking element. In combination with the 3A and 4A insert sets and the matching connector housings for M20 or M25 with cable glands, it provides a compact, efficient and flexible solution for a wide range of industrial applications.

  • Sept 18, 2025 - icotek New AT-HA Adapter Grommets 1

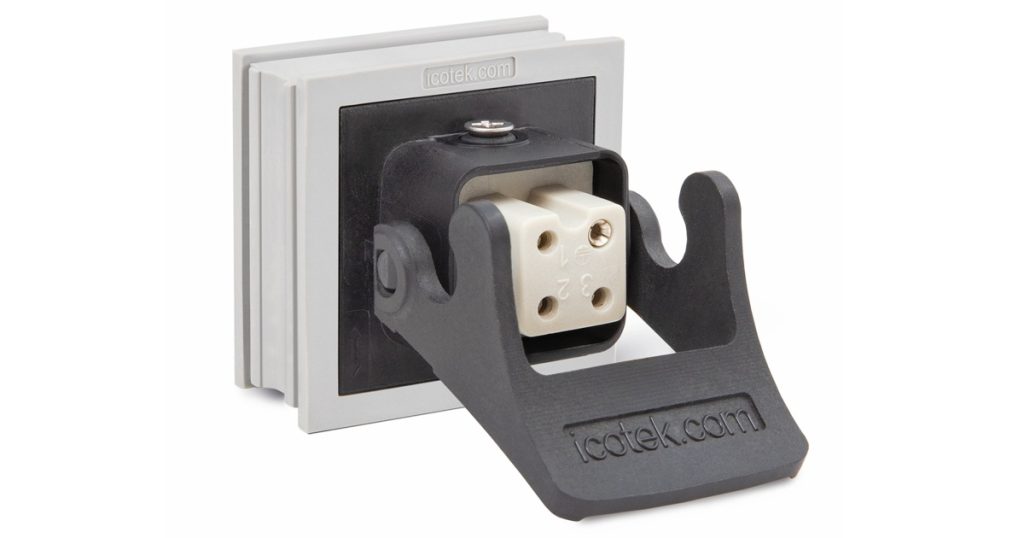

    AT-HA (with insert)
  • Sept 18, 2025 - icotek New AT-HA Adapter Grommets 1

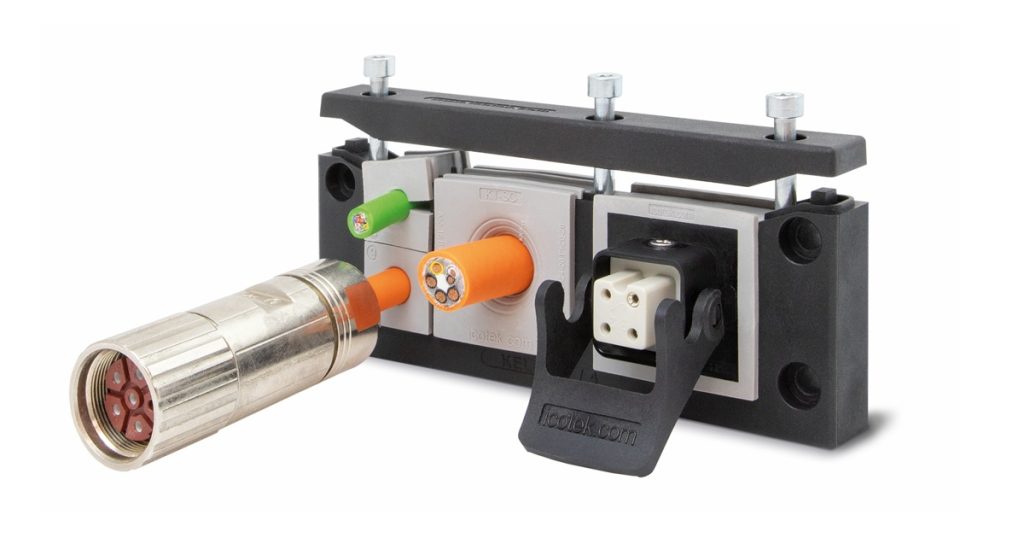

    AT-HA with KEL-U application

    • Advantages for Users

    • Space-saving thanks to the integration of the connector into the cable entry frame
    • Can be combined with existing frame solutions
    • No additional cut-outs are required
    • Very easy to assemble
    • Compatible with numerous industrial plug insert manufacturers

    Technical Characteristics

    • Protection Class: IP65 when plugged in, IP54 with optional protective cover
    • Plug Housing with Cable Gland:
      • M20 for cable diameters from 6 to 12 mm
      • M25 for cable diameters from 13 to 18 mm
    • Flame Class: UL 94 V-0, self-extinguishing
    • Temperature: -40 °C to +100 °C (static)
    • Halogen free, silicone free
    • Material:
      • Grommet: Elastomer
      • Body: Polyamide

    With the AT-HA grommet, icotek is driving new standards in connection technology. The solution offers users greater flexibility, reduces the space required in the control cabinet and enables safe, standard-compliant integration.

    For more information on the AT-HA grommet HERE

    Sept 18, 2025 - icotek New AT-HA Adapter Grommets

    Source
