ManuAuto: BALLUFF BES0042 Inductive Standard Sensor

July 9, 2025 - ManuAuto BALLUFF BES0042 Inductive Standard Sensor

July 9, 2025

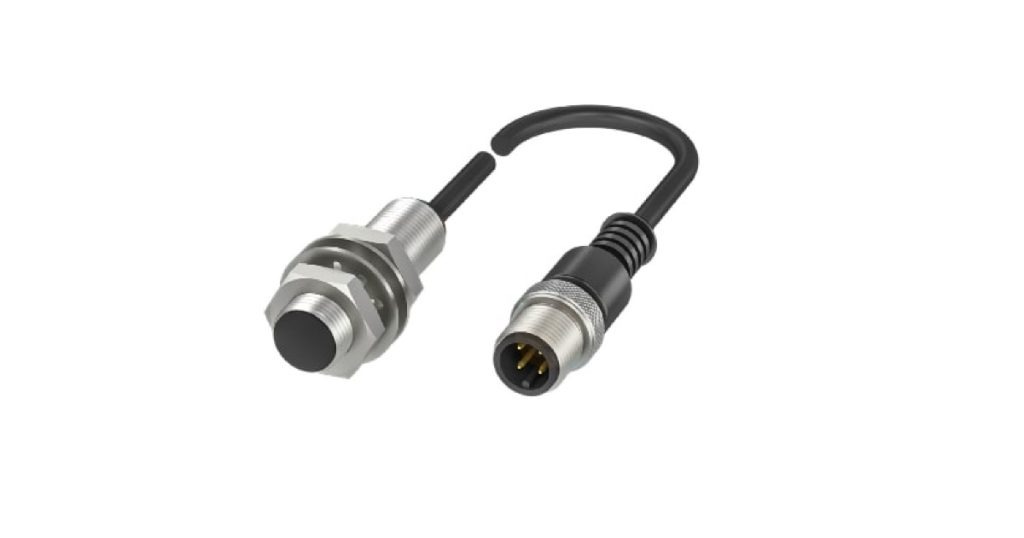

Balluff BES0042 Inductive Standard Sensor Provides an Optimum Price/Performance Ratio

Balluff BES0042 standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, they offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Features

  • Connection: M12x1-Male, 4-pin, A-coded, Cable with connector, 0.30 m, PUR
  • Operating Temperature: -25 to 70 °C
  • IP Rating: IP67
  • Shielded and unshielded versions
  • Plug or cable connection

Specifications

Inductive Sensors: Interface
Output CharacteristicPolarized normally open (NO)
Inductive Sensors: Electrical Connection
ConnectionM12x1-Male, 4-pin, A-coded, Cable with connector, 0.30 m, PUR
Polarity Reversal ProtectedYes
Inductive Sensors: Electrical Data
Protection Class–
Ripple15 %
Switching Frequency1300 Hz
Operating Voltage Ub10 to 36 VDC
Current (Ie)100 A
Inductive Sensors: Range/Distance
Measuring Range3 mm
Assured Operating Distance Sa2.4 mm
Real Switching Distance sr3 mm
Inductive Sensors: Physical & Environmental Characteristics
DimensionØ 12 x 43 mm
Weight–
InstallationFor flush mounting
Operating Temperature-25 to 70 °C
HousingBrass, Nickel-free coated
IP RatingIP67
Tightening Torque15 Nm
MTTF315 a
Standards and ApprovalscULus, CE, UKCA, WEEE, IEC 60947-5-2

As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES0042 INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. ManuAuto’s certified engineers are always available to support you.

You can also find the BES046M and BES048A models in the BALLUFF Inductive Standard Sensors.
