LOVATO: Remote Display Unit Type EXCRDU2

LOVATO Remote Display Unit Type EXCRDU2

June 4, 2025

New EXCRDU2 Remote Display Unit: LOVATO Electric Expands Range of Accessories for Soft Starters & Variable Speed Drives

The EXCRDU2 Remote Display Unit is compatible with LOVATO Electric soft starters ADXL series and ADXNP type, as well as variable speed drives VLB series, equipped with an optional RS485 port. Up to 32 devices can be connected to the same unit, even in a mixed configuration.

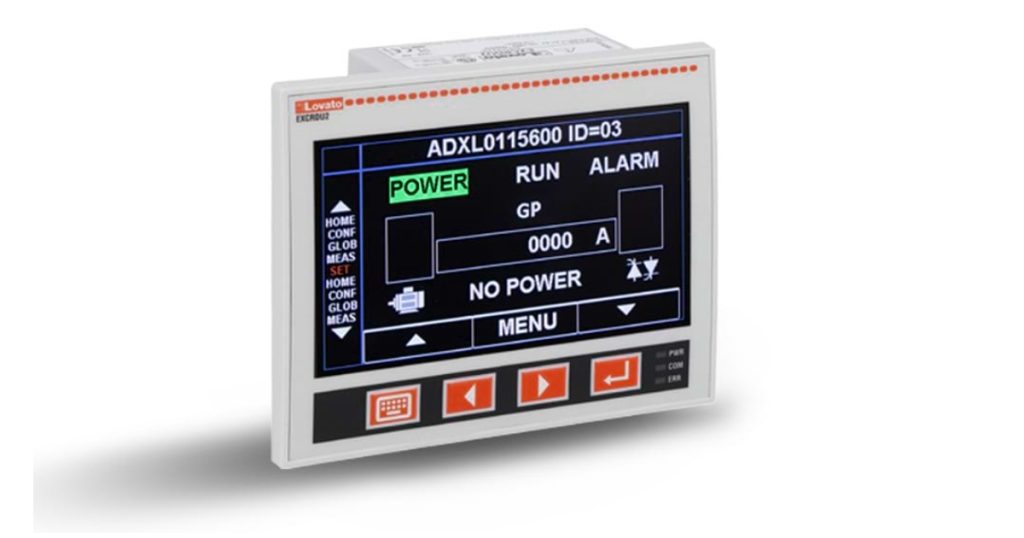

EXCRDU2 features a multilingual 118x96mm widescreen color graphic display and an integrated RS485 port for connection to multiple motor starters. Its modern and elegant design, along with its flush-mount execution compatible with the standard 92x92mm cut-out, makes it ideal for front-panel installation, enabling centralized control and monitoring of motor starters. Through EXCRDU2, it is possible to send motor start and stop commands, as well as monitor the status and main electrical measurements of individual devices. When used for variable speed drive control, it also allows motor speed adjustment, direction reversal, and setpoint configuration in PID control mode, a function dedicated to maintaining a constant physical parameter within the system.

The connection between the EXCRDU2 remote display unit and the motor starters is made via RS485 port (Modbus-RTU protocol), which can reach a maximum distance of 600m between the remote display unit and the farthest starter. The communication parameters can be freely configured directly via the integrated keyboard. EXCRDU2 is powered by an auxiliary voltage of 100…240VAC 50/60Hz or 110…250VDC and is supplied as standard with a gasket ensuring IP65 front protection degree. Furthermore, it is cETLus certified for the North American market.

Specifications

With the EXCRDU2 remote display unit it is possible to command and monitor up to 32 starters via RS485 communication, at choice between soft starters ADXL… or ADXNP… series and variable speed drives VLB… series.

  • Auxiliary power supply: 100…240VAC 50/60Hz, 110…250VDC
  • Widescreen colour LCD graphic display 118x96mm
  • Isolated RS485 communication port, Modbus-RTU protocol
  • Configurable communication parameters
  • Integrated optical port for firmware update

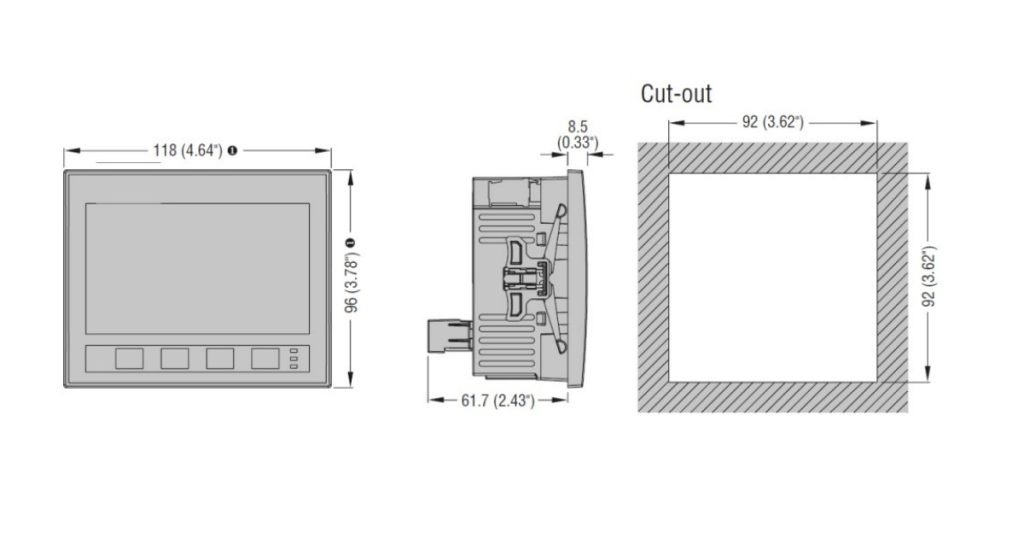

  • Flush mount, standard 92x92mm cut-out
  • RS485 cable included, 3m length
  • IEC degree of protection: IP65 frontal with gasket (provided as standard), IP20 housing and terminals

Compatible with:

  • Soft Starters ADXL… series equipped with RS485 communication card code EXC1042
  • Soft Starters ADXNP… series equipped with RS485 communication module, code CX04
  • Variable Speed Drives VLB… series equipped with RS485 logic unit, code VLBXL06 (already built-in on complete drives type VLB3…A480)

Certifications & Compliance

  • Certifications: cETLus
    Compliant with Standards: IEC/EN/BS 61010-1, IEC/EN/BS 61010-2-030, IEC/EN/BS 61000-6-2, IEC61000-6-4
June 4, 2025 - LOVATO Remote Display Unit Type EXCRDU2 1
June 4, 2025 - LOVATO Remote Display Unit Type EXCRDU2

Source
