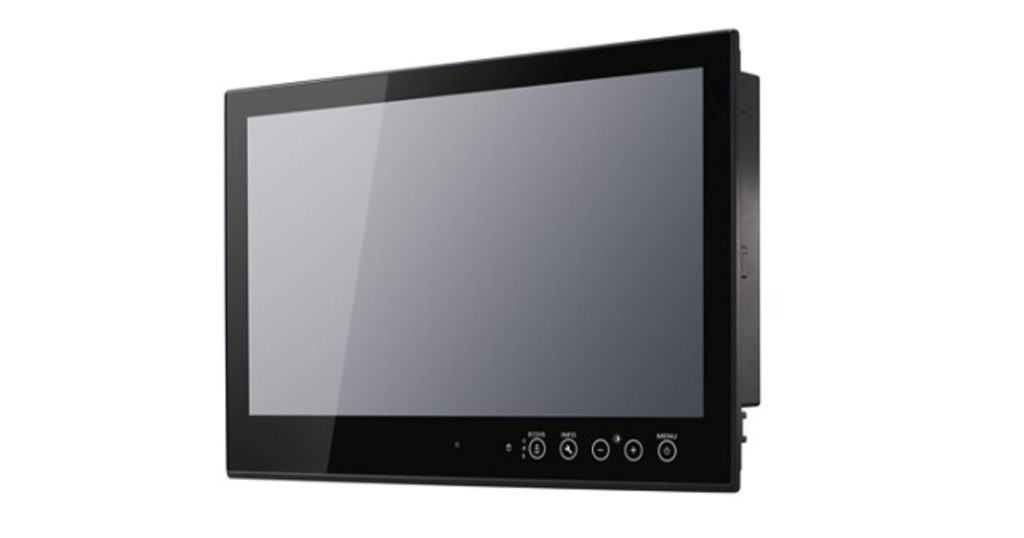

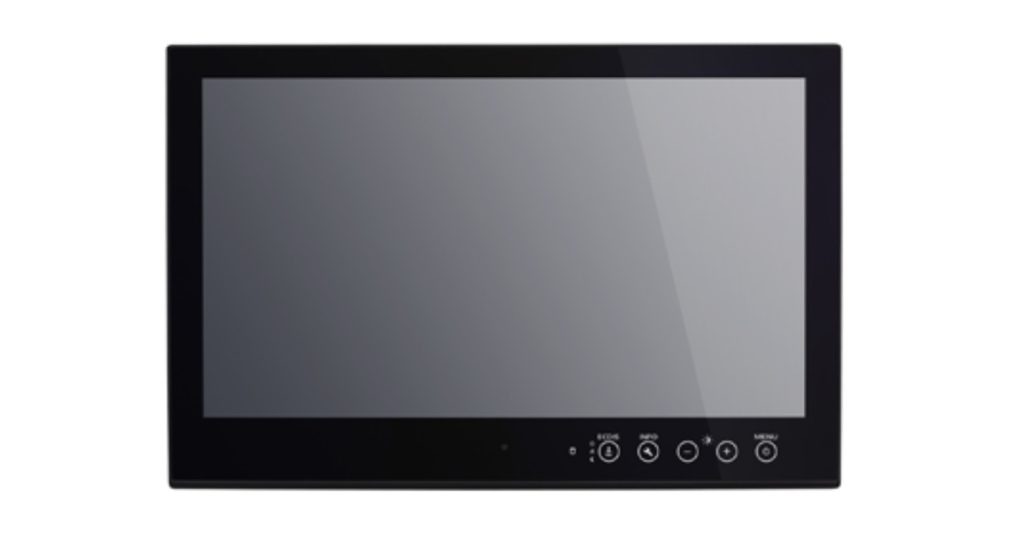

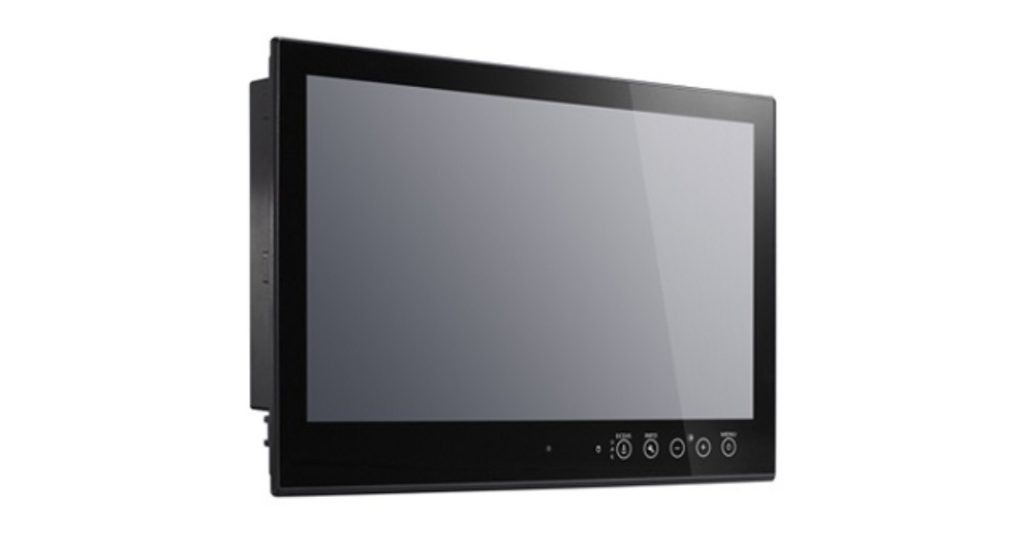

The MD-224Z Series: Discover Robust Functionality

The MD-224Z Series of industrial marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, thereby reducing deployment costs and overall time-to-market. The innovative and user-friendly SavvyTouch display controls offer several unique features not found in most marine display consoles: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates of power status, and a quick switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).

  • May 23, 2025 - ManuAuto_ MOXA - HMI MD-224Z Industrial Monitor
  • May 23, 2025 - ManuAuto_ MOXA - HMI MD-224Z Industrial Monitor
  • May 23, 2025 - ManuAuto_ MOXA - HMI MD-224Z Industrial Monitor

The MD-224Z Series displays are cULus listed and compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for industrial maritime applications. Their IP54rated (IP66-rated models available on request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies. ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.

Features

  • 24-inch viewable image display (300 nits)
  • Ingress Protection Rating IP54 (front), IP22 (rear)

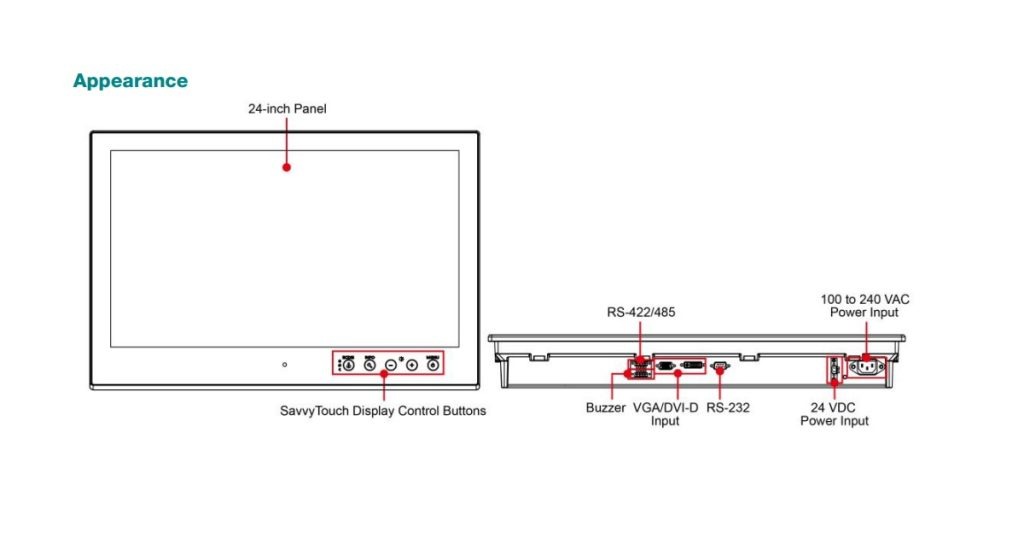

  • 1 x RS/232 and 1 x RS/232/422/485 Serial ports
  • 1 x DVI-D (DVI-D) and 1 x VGA (D-sub) Video inputs
  • Color calibrated for ECDIS compliance
  • Capacitive Touch (PCAP) interface
  • Dual power supplies (100 to 240 VAC, 24 VDC)
  • -15 to 55°C operating temperature range
  • ManuAuto_-MOXA-HMI-MD-224Z-Industrial-Monitor-
  • ManuAuto_-MOXA-HMI-MD-224Z-Industrial-Monitor-
    • May 23, 2025 - ManuAuto_ MOXA - HMI MD-224Z Industrial Monitor 2
