Hubbell: Wiegmann N12 JIC Continuous Hinge 14X12X8 Carbon Steel – Gray

Hubbell: N12 JIC Continuous Hinge 14X12X8 Carbon Steel - Gray

May 9, 2025

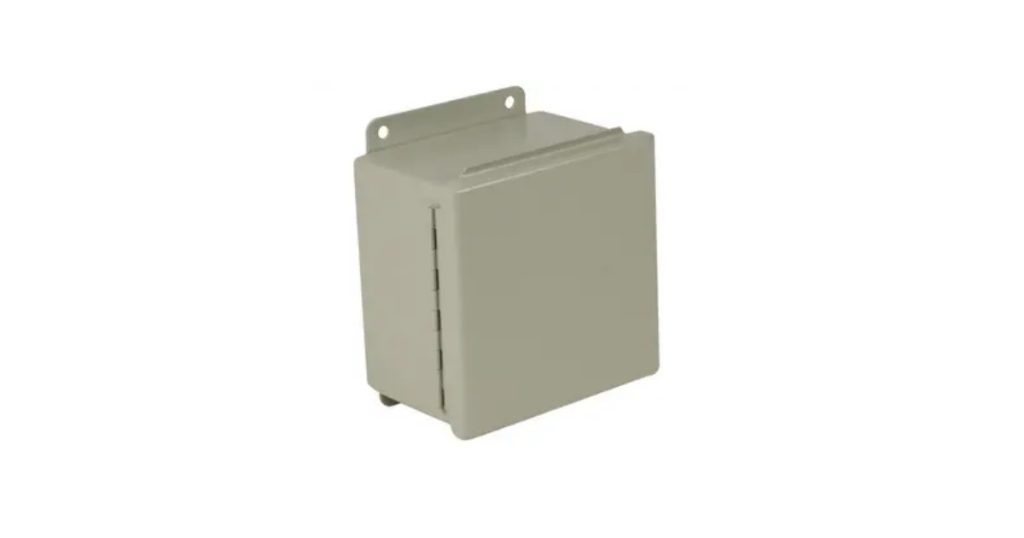

N12 JIC Continuous Hinge: Reliable & Robust Protection

The N12 JIC Continuous Hinge enclosure is intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide effective protection from dust, dirt, oil, and water. Bodies fabricated from 14-gauge and doors fabricated from 16-gauge steel. Continuously welded seams ground smooth, less knockouts or holes.

The N12 JIC enclosure lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates located on top and bottom of enclosure. Weldnuts are provided for mounting optional panels securely, and the external screw clamps are quick and easy to operate. Standard continuous hinge with grounding provisions provided.

Specifications

Features

  • Construction: Continuously Welded Seams
  • Cover Type: Hinged Cover
  • EU RoHS Indicator: Yes
  • Finish Type: Textured
  • Latches Type: Clamps
  • Material: Carbon Steel
  • Mounting Type: External Mounting Plates
  • Type: Enclosure

Dimensions

  • Depth: 8 in
  • Height: 14 in
  • Weight: 21 lb
  • Width: 12 in

Certifications & Compliance

Certified Listed: cULus

NEMA Rating: 12

May 9, 2025 - Hubbell_ N12 JIC Continuous Hinge 14X12X8 Carbon Steel - Gray
